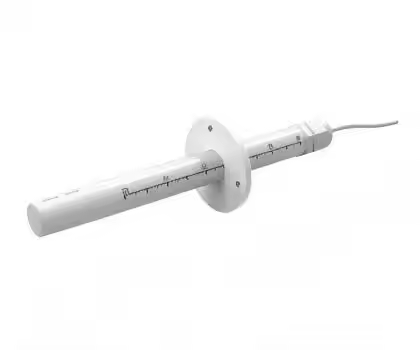

Teren AVTP Probe Hot-Film Air Flow Transmitter

SUPPORT
DatasheetUser ManualWiring Diagram

Stock

IAF-T-250-V-1-L15

Out of Stock| Available on backorder

Order Product

$1,300.00 NZD
$1,300.00 NZD
Sale Sold out

The Teren AVTP is a compact, probe-style air velocity transmitter designed for accurate and reliable air velocity measurement in ventilation systems and equipment. This "blind" probe (without display) is particularly well-suited for applications requiring a small footprint and integration into confined spaces, such as laminar flow measurement in small cabinets within cleanrooms and the pharmaceutical industry.

Based on the thermal anemometer principle, the AVTP utilizes an innovative and sensitive hot-film sensor. This sensor is insensitive to dust and dirt, simplifying installation and minimizing maintenance requirements. The AVTP has no moving parts, ensuring accurate, reliable, and long-term measurement stability, enhanced by good temperature compensation. Digital technology is applied to ensure accurate output, and over-voltage and reverse polarity protection provide high reliability and anti-interference capability. The innovative probe design is available in various lengths and includes scales for ease of installation and positioning.

Technical Specifications

Parameter Value
Sensor Hot-film sensor
Range and Accuracy 0~30m/s with different accuracy, see Models
Response Time Typical 2s
Angle Dependence < 3% reading @
Temperature Compensation 10~40°C
Output 4-20mA (3 wires), 0-10V, RS485/Modbus
Output Load ≤500Ω (current), ≥2kΩ (voltage)
Power 24V AC/DC ±20%
Electrical Connection PVC cable, 1m
Working Environment -20~80°C, 0~95%RH (Non cond.)
Housing Fire retardant PC (UL94 V-0)
Protection IP65
Weight Depending on different lengths, 130g~160g
Approval CE



Models

Model
AVTP AVTP - Probe Air Velocity Transmitter

output
1 0~10VDC
2 4~20mA
8 RS485/Modbus

Range
1 0~1 m/s, ± (0.03m/s +5% Reading)
2 0~2 m/s, ± (0.03m/s +5% Reading)
5 0~5 m/s, ± (0.2m/s +5% Reading)
6 0~10 m/s, ± (0.2m/s +5% Reading)
7 0~20 m/s, ± (0.2m/s +5% Reading)
8 0~30 m/s, ± (0.2m/s +5% Reading)
Probe Length
0 150 mm
1 210 mm

Dimensions
