Aneng A3008 - Mini pen multimeter - 6000 counts

MEM-DP-142-1

$59.00 NZD
$59.00 NZD
Sale Sold out
FILES
User Manual

Low stock

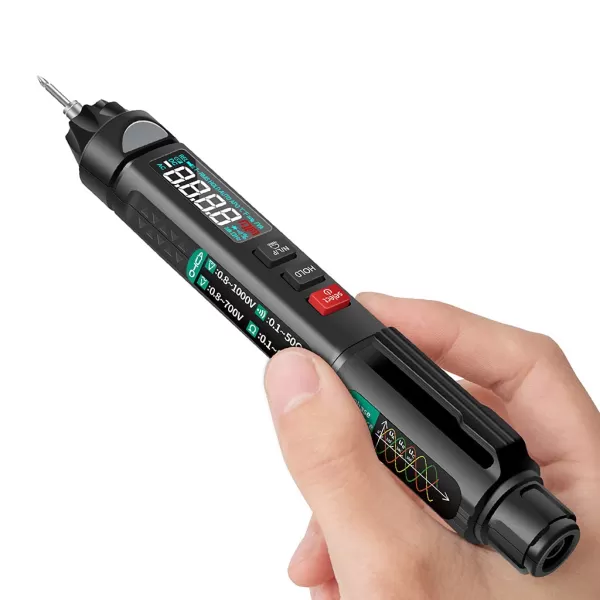

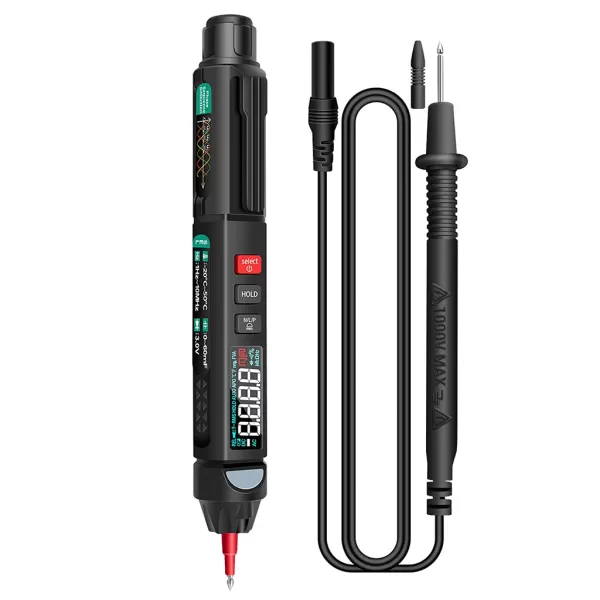

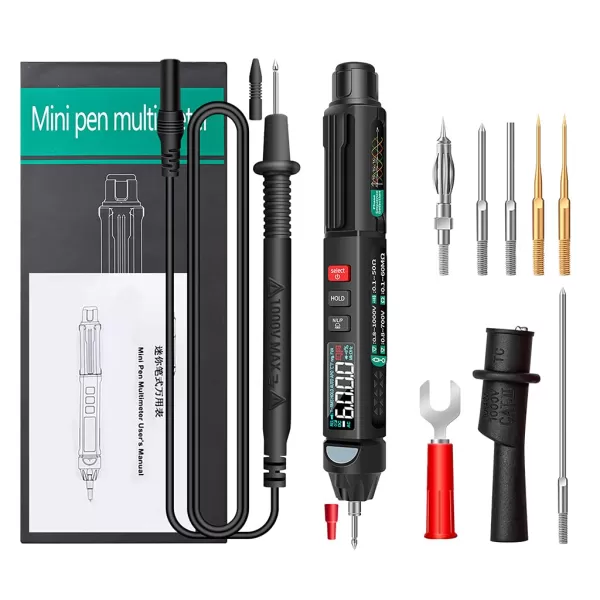

The Aneng 3008 is a 3 5/6 digit, true RMS, auto-ranging multimeter in a compact pen-style format. It features automatic function identification for DC/AC voltage and resistance, as well as manual selection for capacitance, diode testing, continuity, and non-contact voltage detection (NCV). The device is powered by a single AAA 1.5V battery and offers a large LCD display with a backlight.

Technical Specifications:

  • DC Voltage: 600.0mV/6.000V/60.00V/600.0V/1000V
  • AC Voltage: 6.000V/60.00V/600.0V/750V
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF
  • Diode Test: Forward voltage drop
  • Continuity Test: Buzzer sounds for resistance < (50±20)Ω
  • NCV Detection: Yes
  • Sampling Rate: Approx. 3 times/second
  • Display: LCD
  • Power Supply: AAA 1.5V x 1
  • Dimensions: 170mm x 24mm x 21mm
  • Weight: Approx. 50g (with battery)

Please note that the accuracy specifications for each measurement range are detailed in the user manual and are subject to certain conditions.
