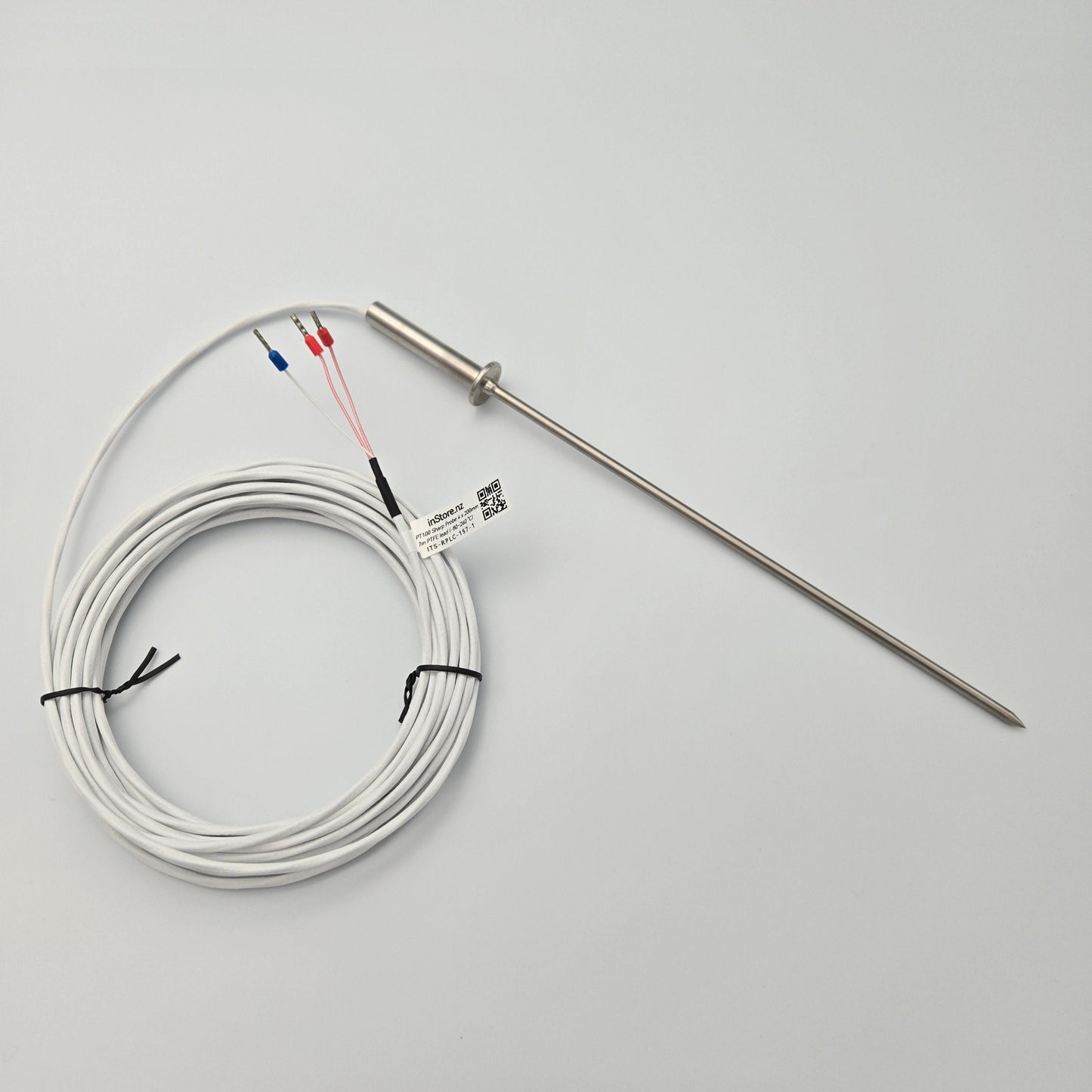

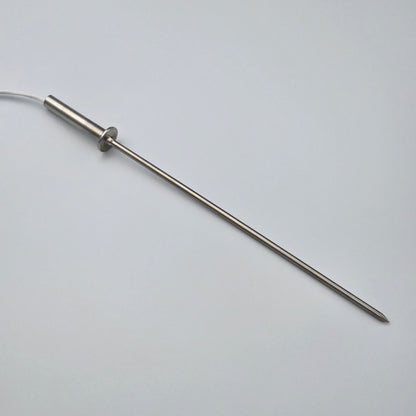

PT100 Sharp Food Probe 4x200mm with PTFE lead [-80...260°C]
SHARE
Stock
SKU:ITS-RPLC-157-1
Order Product
Regular price
$260.00 NZD
Regular price
Sale price
$260.00 NZD
Unit price
/
per
Couldn't load pickup availability
This meticulously designed PT100 temperature probe delivers precise temperature measurement with its Class A accuracy sensing element (±0.15 °C accuracy at the ice point). It is available in a duplex sensor option for applications requiring redundant readings.
Key Features:
- Precision Measurement: Class A accuracy (±0.15 °C at ice point) ensures highly accurate temperature readings.
- Durable and Corrosion-Resistant: The 4mm diameter 316SS probe offers excellent resistance to corrosion.
- Chemically Resistant Cable: The PTFE flying lead is durable against abrasion, harsh chemicals, and high temperatures.
- Simplified Installation: The generously long cable allows for direct connection to a terminal box, reducing potential failure points.
- Waterproof Assembly: The probe assembly is fully waterproof.
- Wide Operating Range: Functions reliably in temperatures from -80°C to 260°C.
- Customizable Design: Variations are available upon request, including different probe or cable lengths and connector options.
Applications:
This probe is suitable for various applications demanding accurate and reliable temperature measurement in challenging environments, such as:
- Industrial processes
- Chemical processing
- Laboratory research
- Pharmaceutical manufacturing
Specifications:
Parameter | Value |
Sensor Type | PT100 |
Accuracy Class | Class A |
Probe Diameter | 4 mm |
Probe Material | 316 Stainless Steel |
Cable Insulation | PTFE |
Temperature Range | -80°C to 260°C SIMPLEX / -60 to 200°C DUPLEX |
Special Feature | Sharp tip |
Optional Feature | Duplex sensor |
Note:
Please contact us for custom variations to meet your specific requirements.
