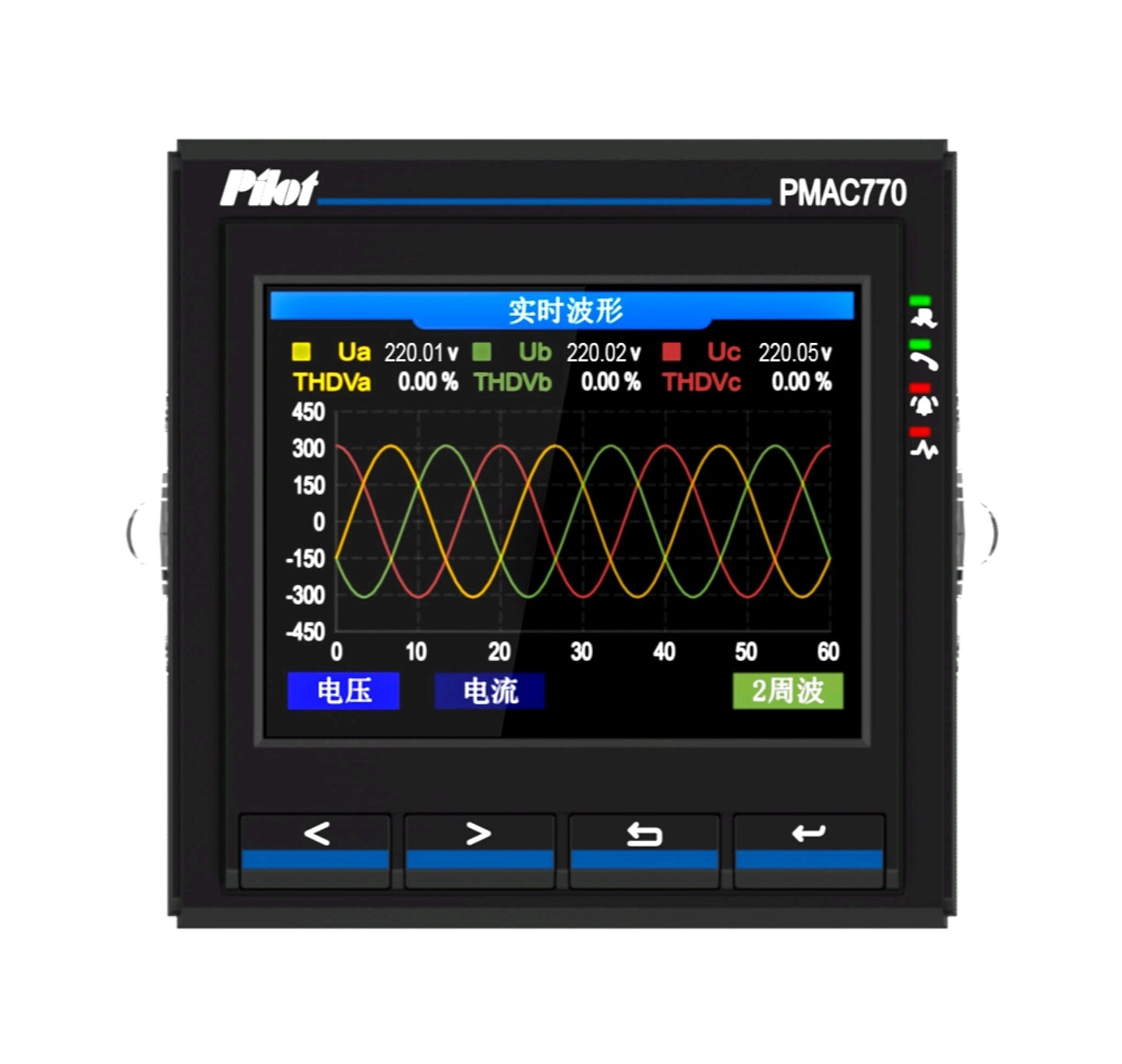

Pilot PMAC770H Power Quality Analyser

SUPPORT
DatasheetUser Manual

Stock

IEA-Q-170-111

Out of Stock| Available on backorder

Order Product

$1,050.00 NZD
$1,050.00 NZD
Sale Sold out

The PMAC770H is a multi-functional power meter designed for professionals to analyze and monitor three-phase power systems. It offers high-precision measurement, comprehensive power quality analysis, and various data recording capabilities.

Key Features

 * Measurement: Voltage (up to 690kV), current (up to 50kA), active/reactive/apparent power, power factor, frequency.

 * Power Quality Analysis:

   * Harmonics (up to 63rd order)

   * Voltage and frequency deviation

   * Voltage imbalance

   * Flicker

   * Voltage swell/sag/interruption

 * Energy Measurement: Full-wave, bi-directional, four-quadrant, multi-tariff, historical data.

 * Demand: Real-time, historical, multi-tariff, forecast.

 * Recording: SOE events, PQ events, waveform recording.

Feature
 Specification
Accuracy Voltage: 0.1%
  Current: 0.1%
  Active Power: 0.2%
  Reactive Power: 0.5%
  Frequency: 0.01Hz
Input 3P4W, 3P3W
Digital Input 3 active inputs standard, up to 11 optional
Relay Output Up to 6
Analog Output 4-20mA (optional)
Pulse Output Available for active and reactive energy
Mounting Panel-mount (96x96mm)
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% (non-condensing)

Communication

 RS485 (standard), optional Ethernet and RS485.

Display

 TFT color LCD (320x240 resolution)



Note: Optional features and expansion modules are available to enhance the functionality of the PMAC770H. Please inquire for customization options to meet your specific needs.
