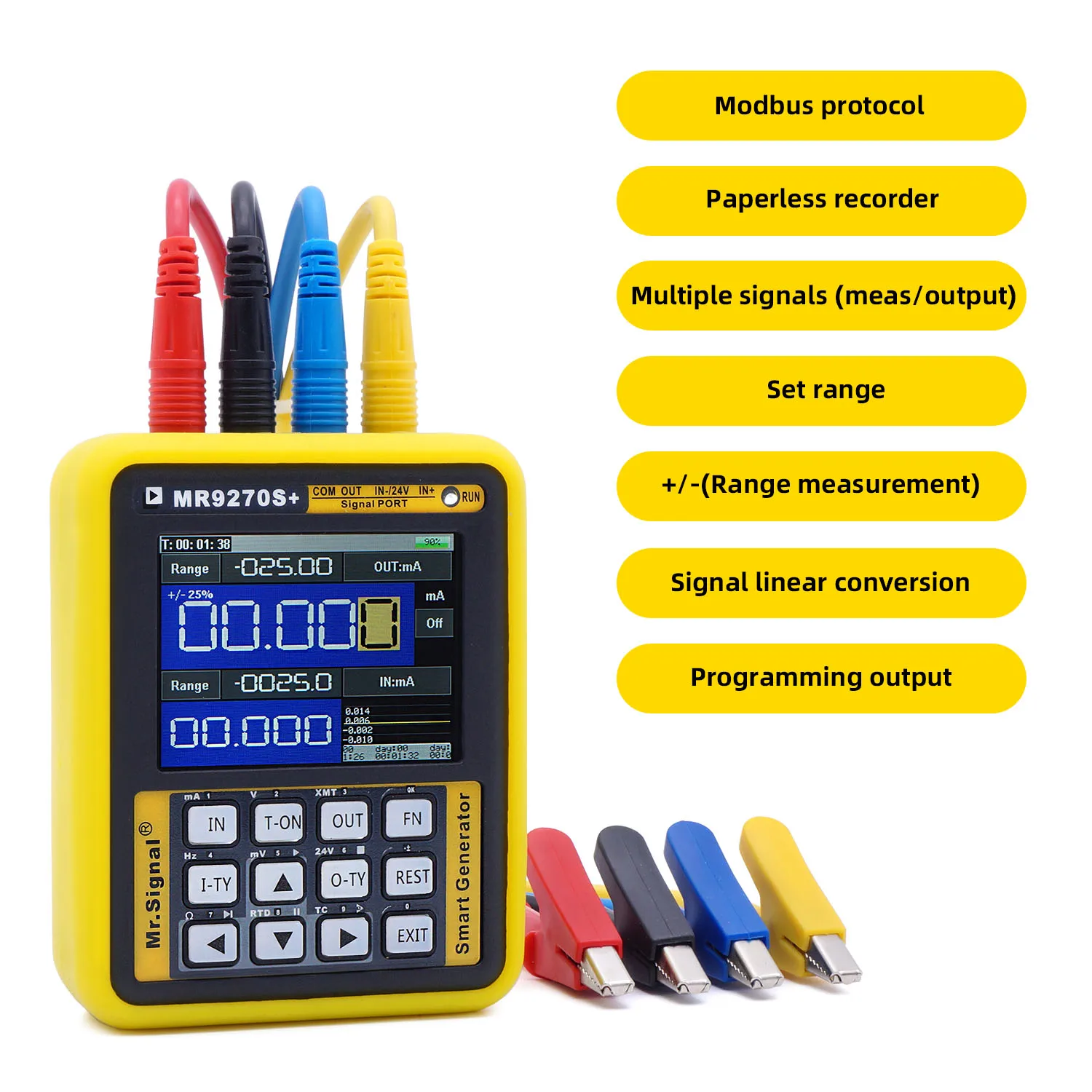

MR9270S+ Multifunctional Signal Generator: Generate, Measure & Analyze

The MR9270S+ is a handheld tool for generating, measuring, and analyzing industrial signals. It features a high-speed processor for reliable operation and a user-friendly interface with a backlit display.

This is a mature product which as been on the market since 2015.

Key Features:

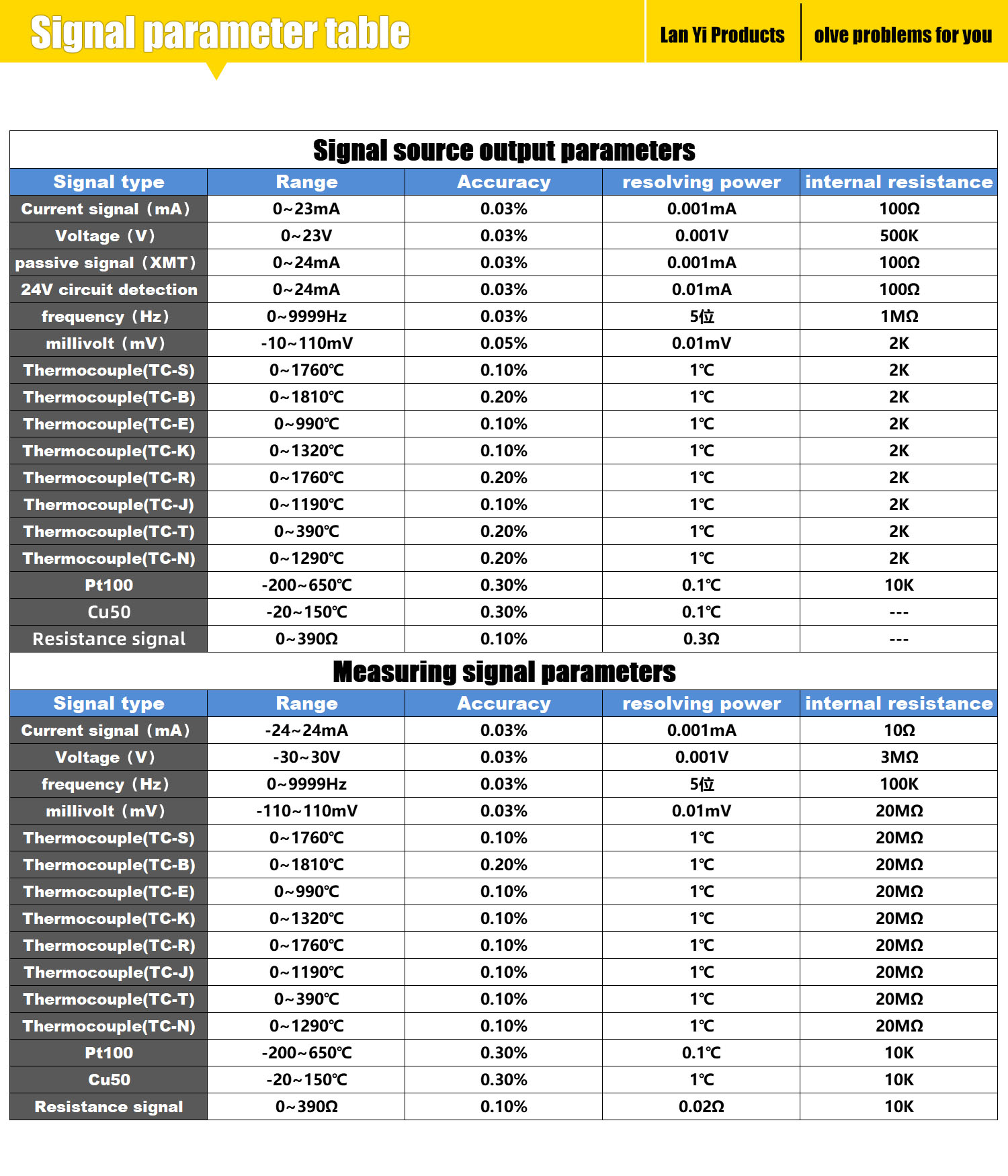

• Measures and outputs various signals: current, voltage, mV, frequency, resistance, thermocouple, thermal resistance, PT100
• Simultaneous measurement and output

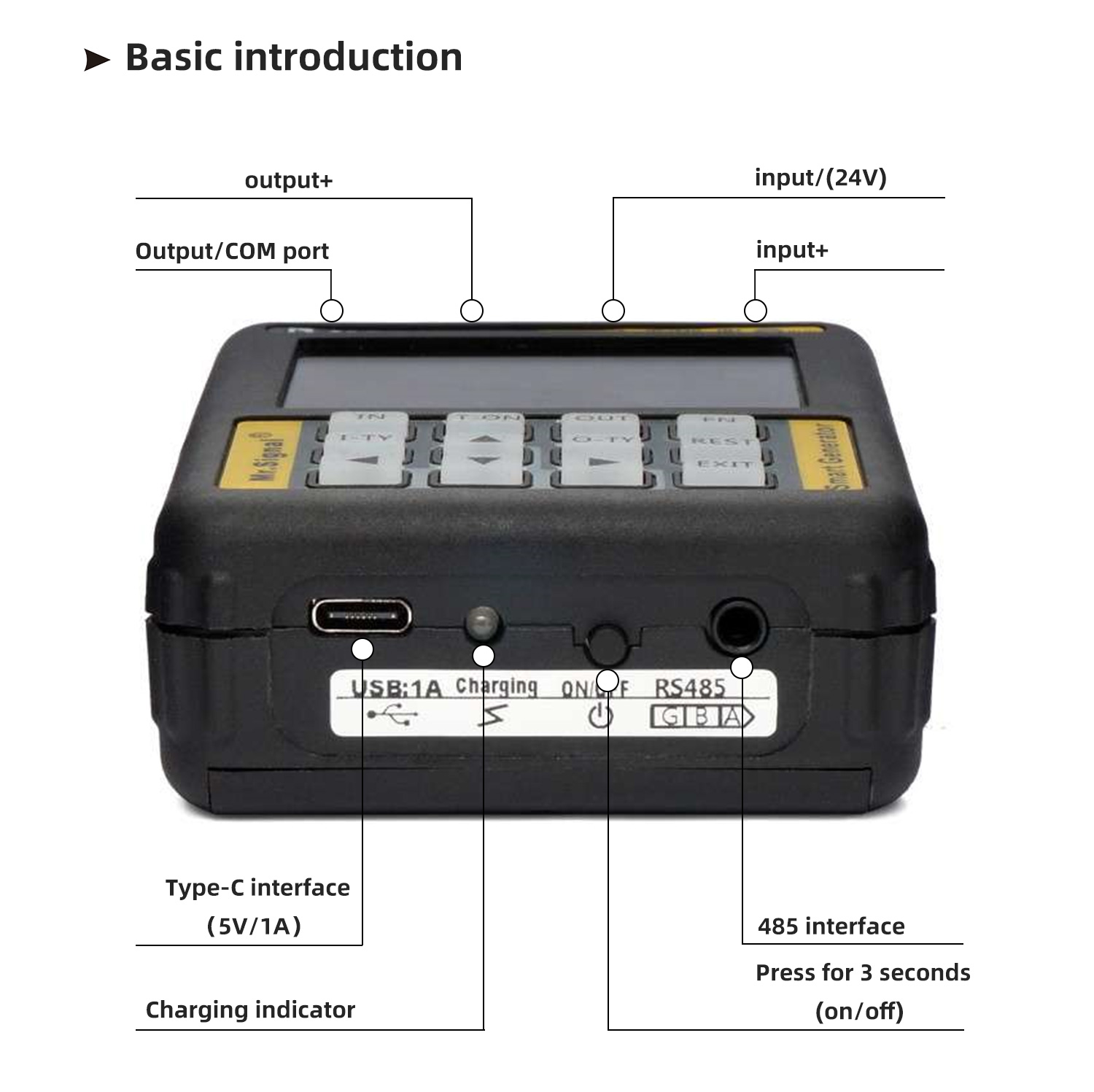

• IO terminals are compatible even with shrouded multimeter leads
• Programmable ramp/step output (e.g. continuously cycle through 4/8/16/20 mA)
• Quick access menu layout
• Input/output signal conversion (e.g., frequency input to current output)
• Real-time curve display
• Modbus RTU master/slave functionality
• Built-in paperless recorder with PC software
• USB to RS485 conversion
• USB to HART modem functionality with the HART model.

Technical Details:

• Battery: Up to 20h standby, 8-10h continuous output (20mA)

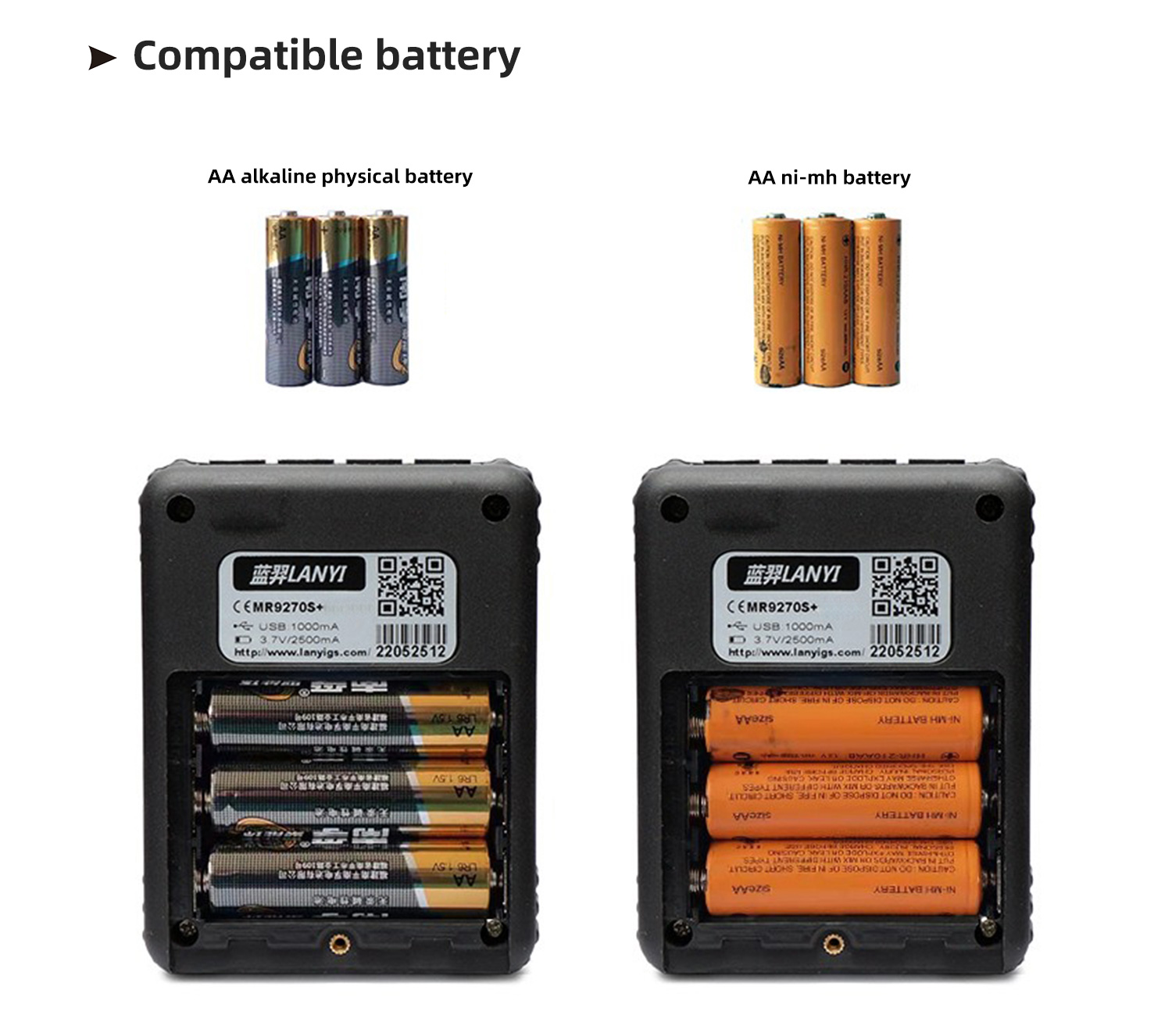

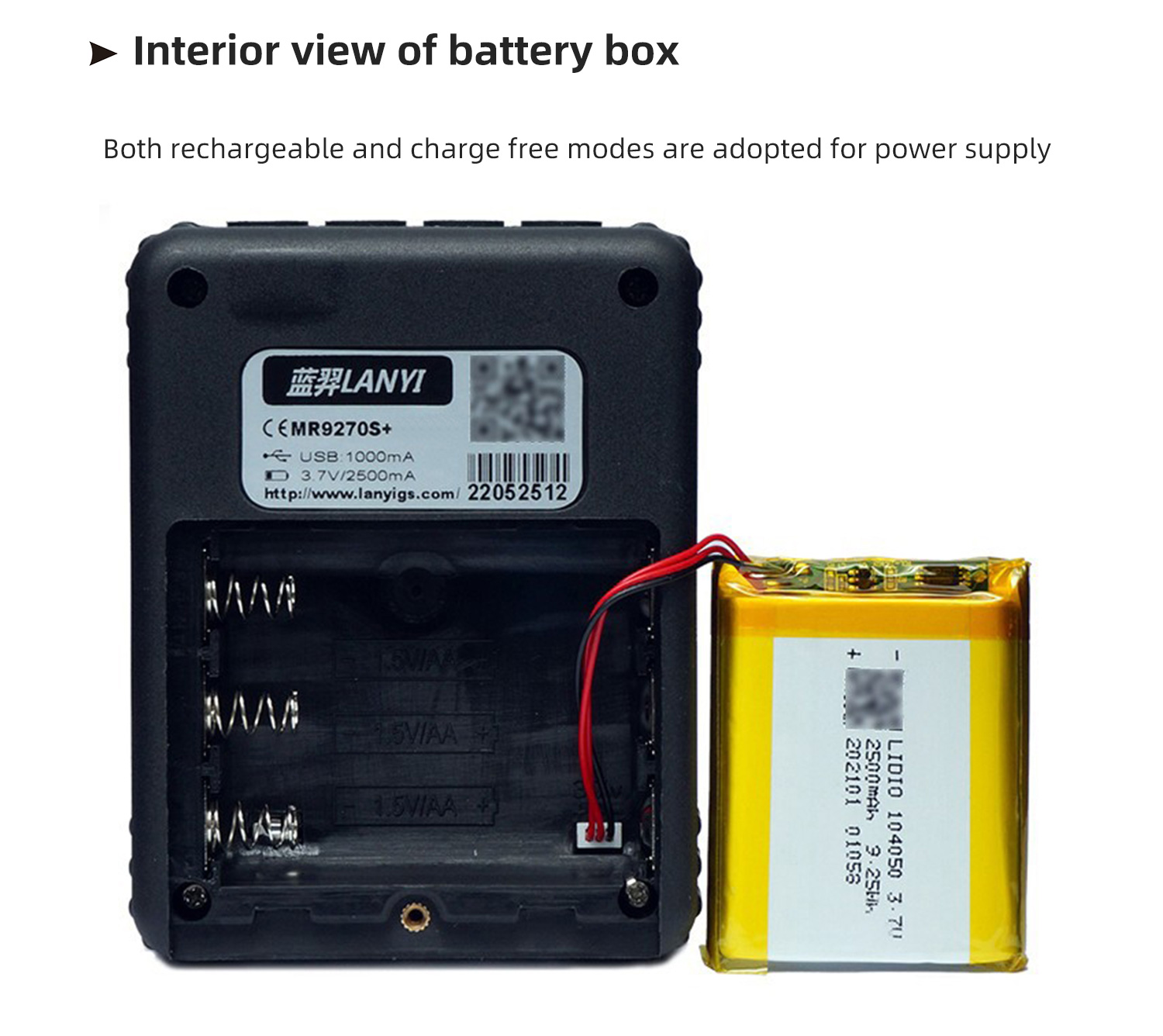

• Supplied with a rechargeable lithium battery, can also operate on 3x AA's.
• Operating Temp: 0°C to 50°C
• Internal reverse/overcurrent protection
• Size: 97mm x 76mm x 33mm
• Weight: 189g

Includes:

• MR9270S+ signal generator
• Certificate
• Carrying case
• Manual
• RS485 adapter
• USB cable
• Test leads (4 colors)

Notes:

• The input and output are not electrically isolated from each other.
• We recommend against using this device while charging to avoid the possibility of creating a parallel path from plant 24 V to earth.
• This is a signal generator, not a multimeter, do not use this for testing mains power.
