DYZC-055 Bearing Seat Load Cell (1 - 10 Ton)

SUPPORT
DatasheetWiring Diagram

Stock

INL-H-210-1

Out of Stock| Available on backorder

Order Product

$1,100.00 NZD
$1,100.00 NZD
Sale Sold out

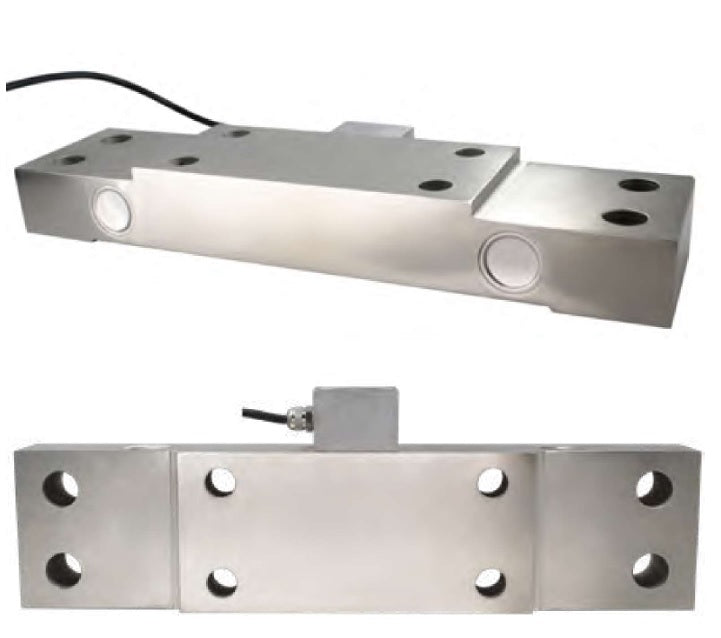

The DYZC-055 Bearing Seat Load Cell is a specialized weighing sensor designed for accurate and reliable force measurement in various industrial applications. Its unique design allows for direct installation under bearing seats to measure the force applied to the bearing, making it ideal for monitoring and controlling loads in machinery and equipment. This load cell is constructed from alloy steel, offering excellent durability and stability for demanding industrial environments.

Key Features

  • Specialized Design: Specifically engineered for measuring force on bearing seats.
  • Accurate and Reliable: Provides precise and stable measurements for effective load monitoring.
  • Robust Construction: Alloy steel material ensures durability and longevity in harsh conditions.
  • Easy Installation: Designed for straightforward integration under bearing seats.
  • Versatile Applications: Suitable for various industrial weighing and force measurement applications.

Technical Specifications

Parameter Value
Range 1.5 - 10 tons
Measurement Type Compression
Material Alloy Steel
Operating Temperature Range -20 - 80 °C
Safe Overload 150%
Extreme Overload 300%
Output Sensitivity 1.0 ± 0.05 mV/V
Excitation Voltage 5 - 15 Vdc
Impedance 350 / 750 ± 50 Ω
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Cable 5 core x 3m
Creep (30 min) 0.5 %FS
Zero Point ± 2 %FS
Non-linearity 0.5 %FS
Hysteresis 0.5 %FS
Repeatability 0.5 %FS
Zero point Temperature Drift per 10 °C 0.05 %FS / 10 °C
Sensitivity Temperature Drift per 10 °C 0.05 %FS / 10 °C
Response Frequency 10 kHz


Dimensions

Parameter 1.5 T 2.5 T 4 T 10-20 T
A 350 410 410 410
B 310 355 355 355
C 38 50 50 50
Φ1 21 21 21 21
D 75 100 100 100
L 152 182 212 212
L1 100 130 160 160
L2 40 60 60 60
