DYZ-104 Column Type Load Cell (0.5-100 kN)
Stock
SKU:
Order Product
Regular price
$1,025.00 NZD
Regular price
Sale price
$1,025.00 NZD
Unit price
per
Couldn't load pickup availability

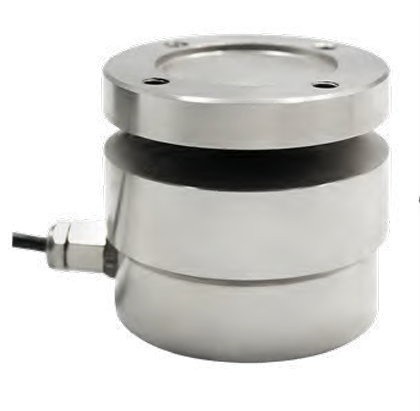

The DYZ-104 Column Type Load Cell is a versatile and robust force sensor designed for various weighing applications in industrial settings. Its simple structure, high accuracy, and reliable performance make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment.
Key Features
- Simple Structure: Cost-effective and easy to integrate.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel or alloy steel for reliable performance in various environments.
- Versatile Applications: Suitable for various industries and research fields, including rail weighbridges, bucket scales, and platform scales.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.
Technical Specifications
| Parameter | Value |
| Range | 0-100kN |
| Material | Stainless Steel/Alloy Steel |
| Output Sensitivity | 2.0 ± 10% mV/V |
| Impedance | 700 Ω |
| Zero point output | + 2 %FS |
| Non-linearity | 0.5 %FS |
| Hysteresis | 0.1 %FS |
| Repeatability | 0.1 %FS |
| Creep (30 min) | 0.1 %FS |
| Temperature Sensitivity Drift | 0.1 %FS / 10 °C |
| Zero point Temperature Drift | 0.1 %FS / 10 °C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 10 - 15 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 120% |
| Extreme Overload | 150% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
| TEDS | N/A |
Dimensions
| Range (kN) | 0.5-10 | 20-100 |
| A | 54 | 95 |
| B | 50 | 90 |
| C | 34 | 55 |
| D | 5 | 45782 |
| E | 8.5 | 15 |
| F | 13 | 20 |
| G | 47 | 72 |
| H | 42 | 70 |
| I | 10 | 15.7 |
| J | 9 | 14 |
| K | 8 | 10.5 |
| M | 3 | 14 |
| X | 8-M5 | 10-M10 |
| Y | 10 | 15.7 |
