DYZ-100 Miniature Button Column-Type Load Cell (0.5-10 kg)
Stock
SKU:INL-C-231-1
Order Product
Regular price
$200.00 NZD
Regular price
Sale price
$200.00 NZD
Unit price
per
Couldn't load pickup availability

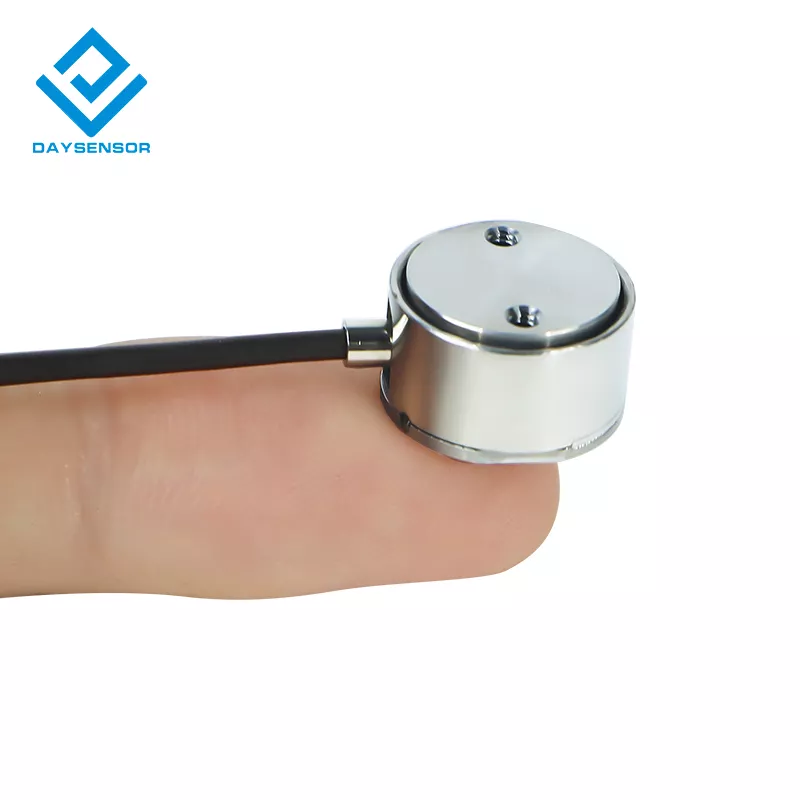

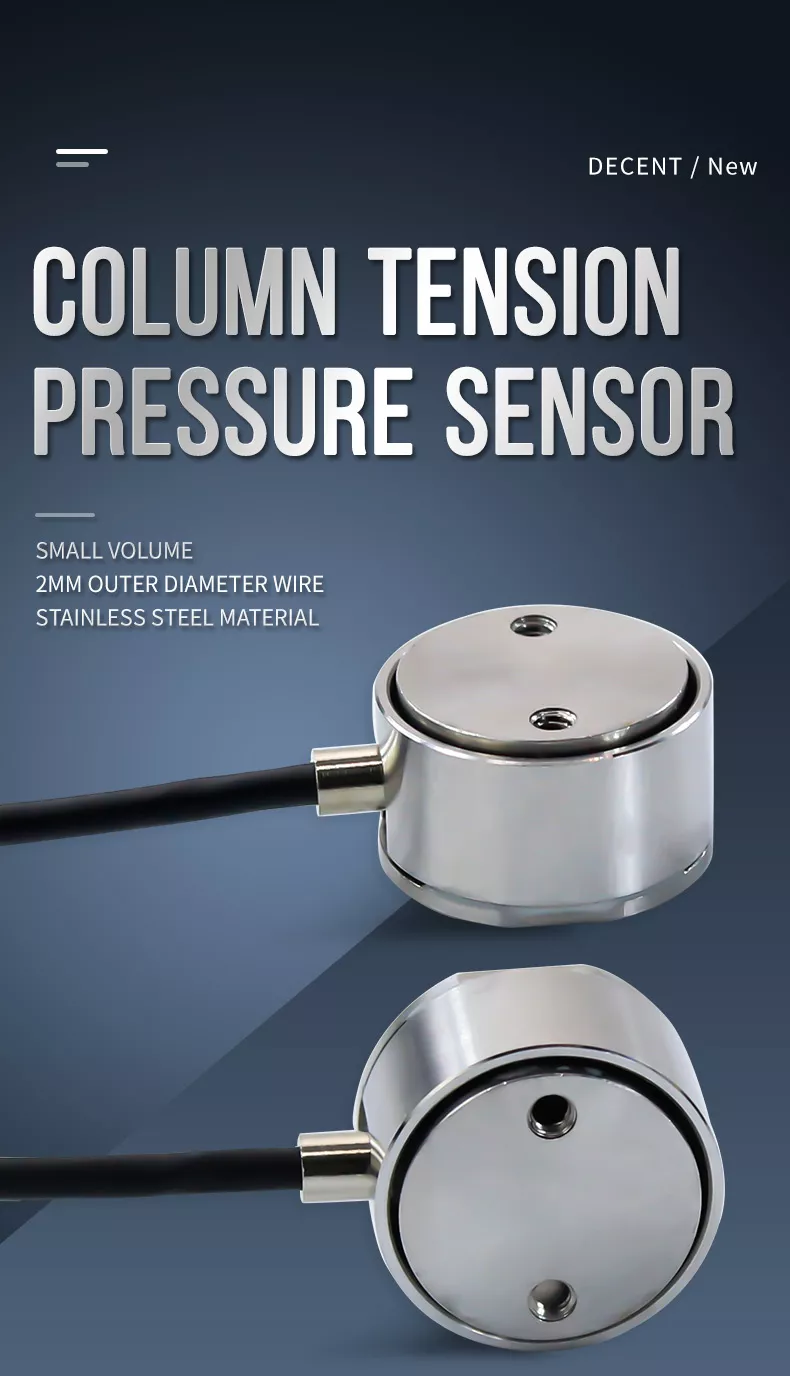

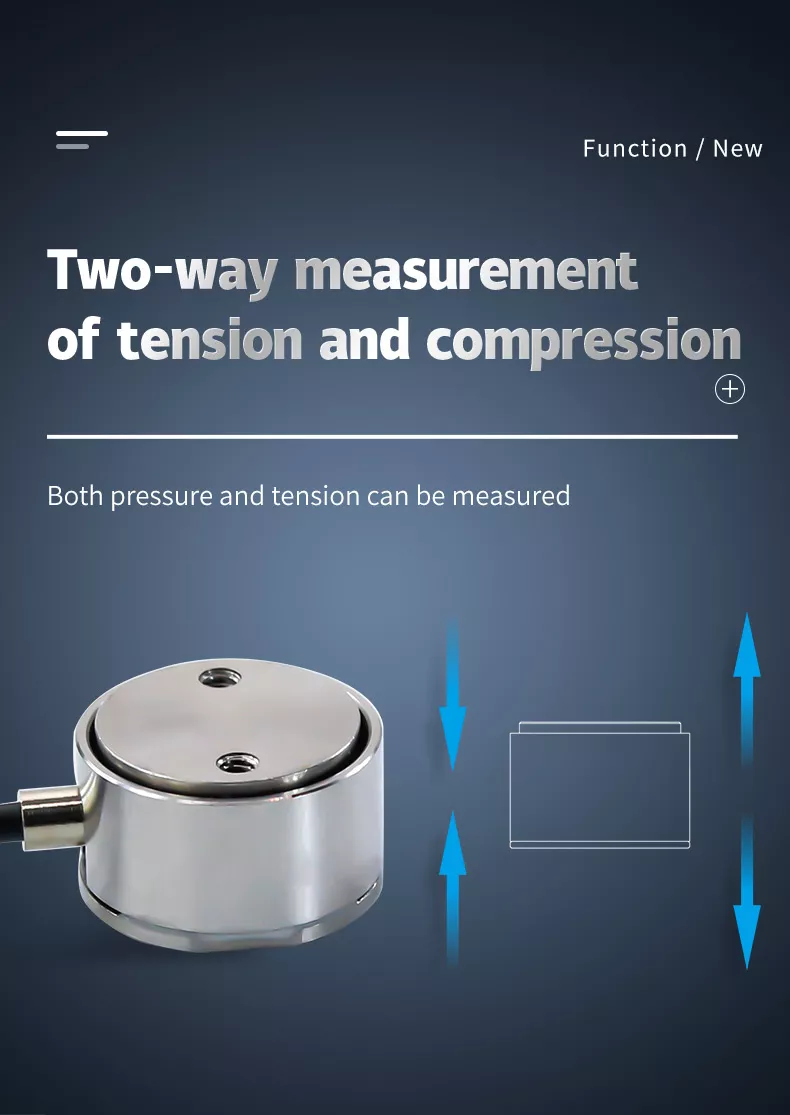

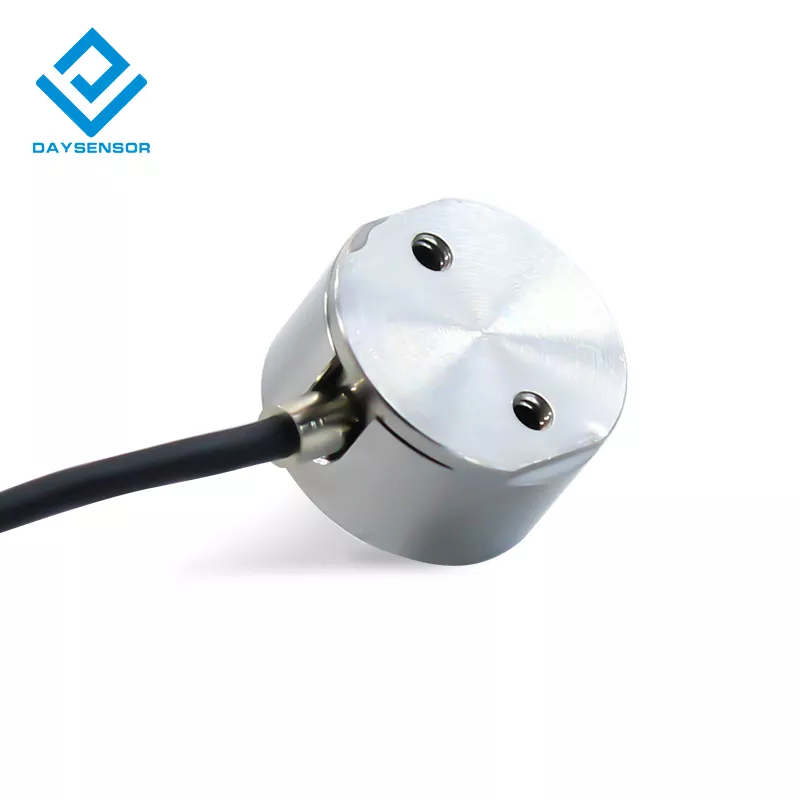

The DYZ-100 Miniature Button Column-Type Load Cell is a compact and versatile force sensor designed for applications where space is limited and precise measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing.
Key Features
- Compact Size: 15mm diameter design for applications with limited space constraints.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.
- Versatile Applications: Suitable for various industries and research fields, including 3C digital product production and testing, rail weighing scales, hopper scales, and platform scales.
- Simple Structure: Cost-effective and easy to integrate.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.
Technical Specifications
| Parameter | Value |
| Range | 0-10kg |
| Material | Stainless Steel |
| Output Sensitivity | 2.0 ± 0.05% mV/V |
| Impedance | 350 Ω |
| Zero point output | + 2 %FS |
| Non-linearity | 0.05 %FS |
| Hysteresis | 0.05 %FS |
| Repeatability | 0.05 %FS |
| Creep (30 min) | 0.05 %FS |
| Temperature Sensitivity Drift | 0.05 %FS / 10 °C |
| Zero point Temperature Drift | 0.05 %FS / 10 °C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 10 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Cable | 5 core x 2m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
| TEDS | N/A |
Dimensions
| Diameter (Φ) | Height (H) |
| 15 mm | 14 mm |
