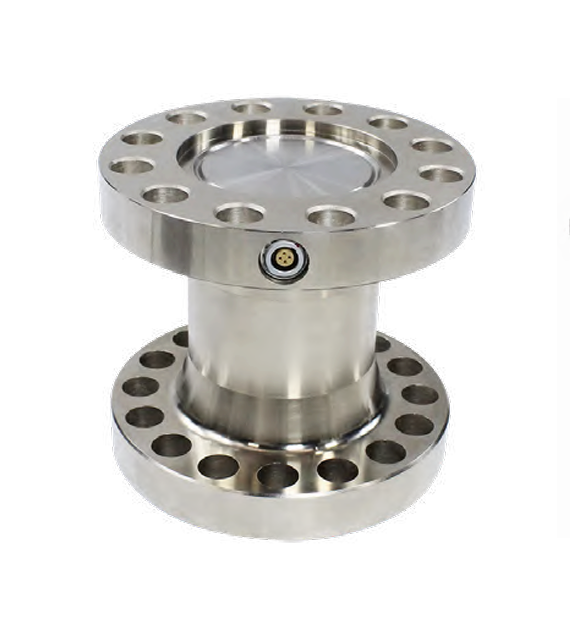

DYZ-015 Large Capacity Column Type Load Cell (30-2500 ton)

SUPPORT
DatasheetWiring Diagram

Stock

INL-C-240-01

Out of Stock| Available on backorder

Order Product

$1,850.00 NZD
$1,850.00 NZD
Sale Sold out

The DYZ-015 Column Type Load Cell is a robust and high-precision force sensor designed for heavy-duty weighing applications in various industrial settings. Its compact structure and high accuracy make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment.

Key Features

  • Robust Construction: The upper and lower flanges are fixed, ensuring a compact and stable structure.
  • High Accuracy: Provides precise and reliable force measurements with good long-term stability.
  • Durable Material: Made of high-quality alloy steel with nickel plating for enhanced durability and corrosion resistance.
  • Versatile Applications: Suitable for various industries and applications, including rail weighbridges, bucket scales, and platform scales.
  • Easy Installation: Designed for straightforward integration into various systems.

Technical Specifications

Parameter Value
Range 0-2500T
Material Alloy Steel
Output Sensitivity 2.0mV/V
Impedance 780Ω
Zero point output 1%FS
Non-linearity 0.2%FS
Hysteresis 0.1%FS
Repeatability 0.1%FS
Creep (30 min) 0.1%FS
Temperature sensitivity drift 0.05%F.S./10°C
Zero point Temperature drift 0.05%F.S./10°C
Insulation Resistance ≥5000MΩ/100VDC
Service voltage 5-15V
Operating Temperature Range -20-80°C
Safe overload 120%
Extreme overload 150%
Cable line specifications Φ5x3m
Cable limit tension 10kg
Response frequency 10kHz


Dimensions
