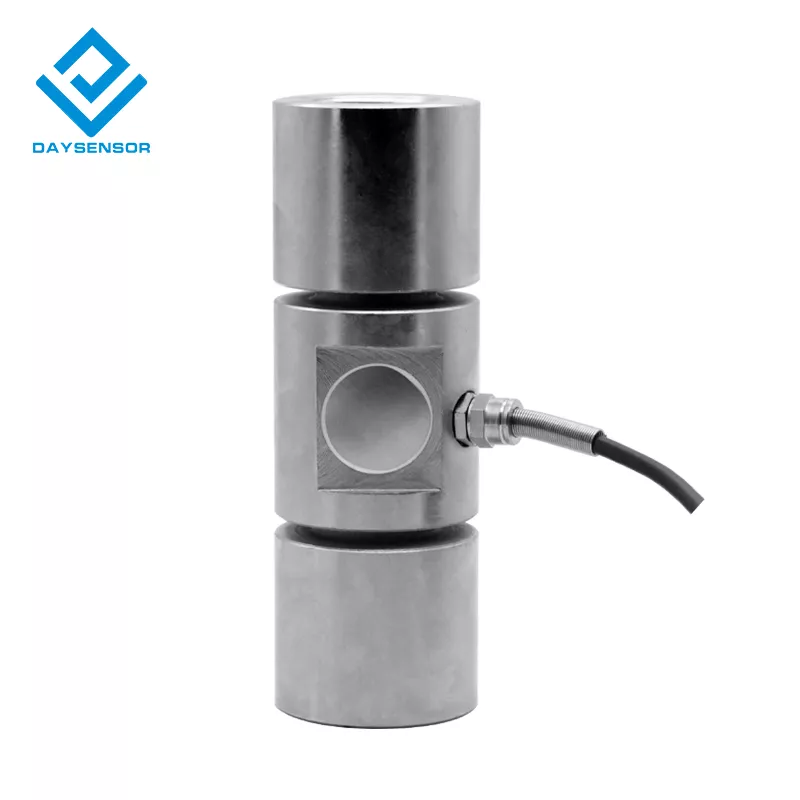

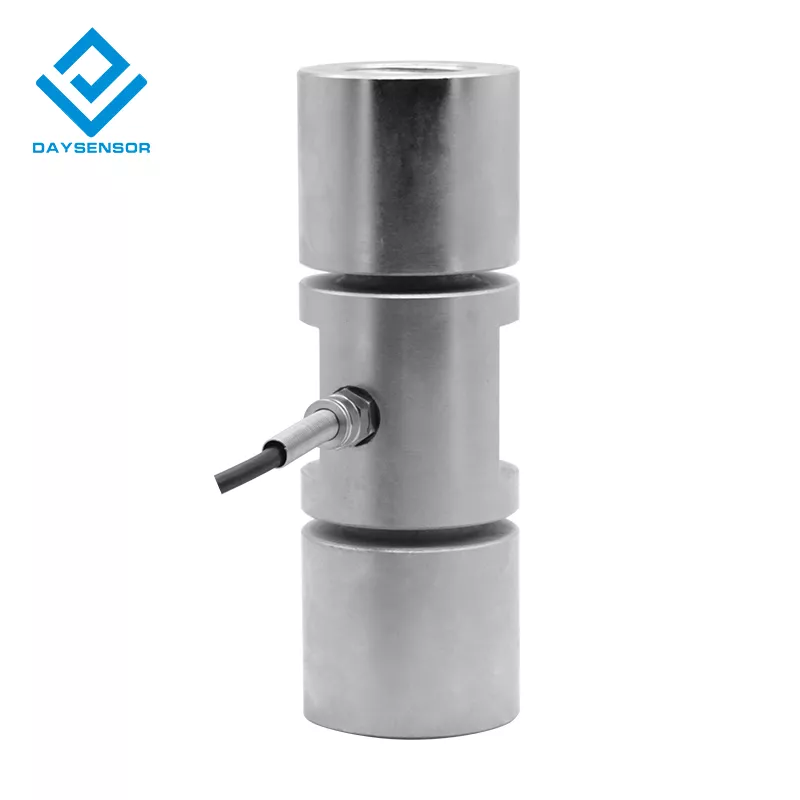

DYZ-014 Large Capacity Column Type Load Cell (20-100 ton)

SUPPORT
DatasheetWiring Diagram

Stock

INL-C-239-1

Out of Stock| Backorders available (ETA 3-weeks)

Order Product

$925.00 NZD
$925.00 NZD
Sale Sold out

The DYZ-014 Column Type Load Cell is a versatile and robust force sensor designed for various weighing applications in industrial settings. Its simple structure, high accuracy, and reliable performance make it an ideal choice for a wide range of applications, including electronic weighing equipment and pull pressure detection equipment.

Key Features:

  • Simple Structure: Cost-effective and easy to integrate.
  • High Accuracy: Provides precise and reliable force measurements.
  • Durable Construction: Made of stainless steel for reliable performance in various environments.

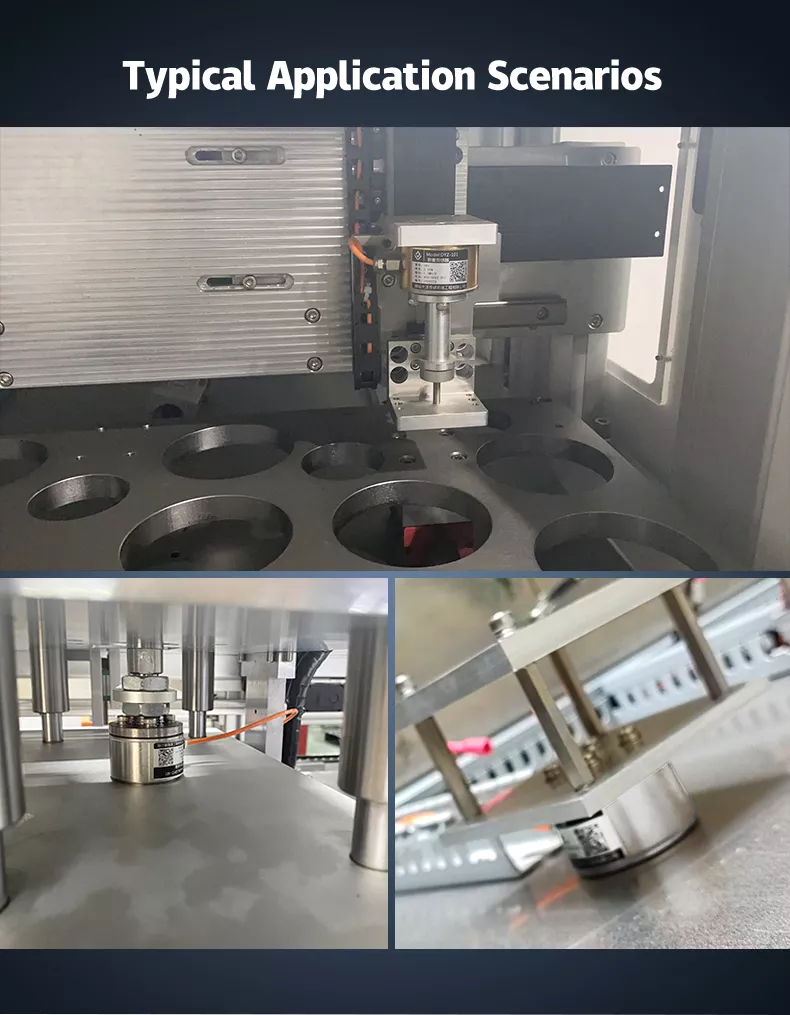

  • Versatile Applications: Suitable for various industries and applications, including pressure equipment, mobile phone assembly, and small pressure platforms.
  • Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.

Technical Specifications:

Parameter Value
Range 0-30T
Material Stainless Steel
Output Sensitivity 1.0-2.0 ± 0.05 mV/V
Impedance 350Ω
Zero point output +1%FS
Non-linearity 0.1%FS
Hysteresis 0.1%FS
Repeatability 0.05%FS
Creep (30 min) 0.05%FS
Temperature Sensitivity Drift 0.05%F.S./10°C
Zero point Temperature Drift 0.05%F.S./10°C
Insulation Resistance ≥5000MΩ/100VDC
Service voltage 5-15V
Operating Temperature Range -20-80°C
Safe overload 150%
Extreme overload 200%

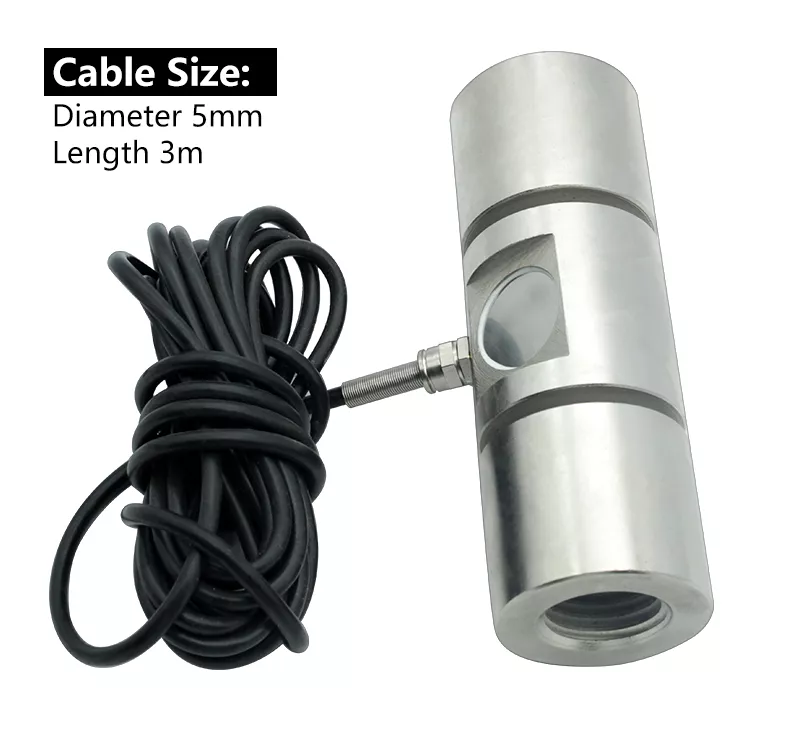

Cable line specifications Φ5x3m
Cable limit tension 10kg
Response frequency 10kHz



Dimensions:
