DYZ-013 Flange Mount Column Type Load Cell (5-30 ton)

SUPPORT
DatasheetWiring Diagram

Stock

INL-C-238-1

Out of Stock| Available on backorder

Order Product

$1,000.00 NZD
$1,000.00 NZD
Sale Sold out

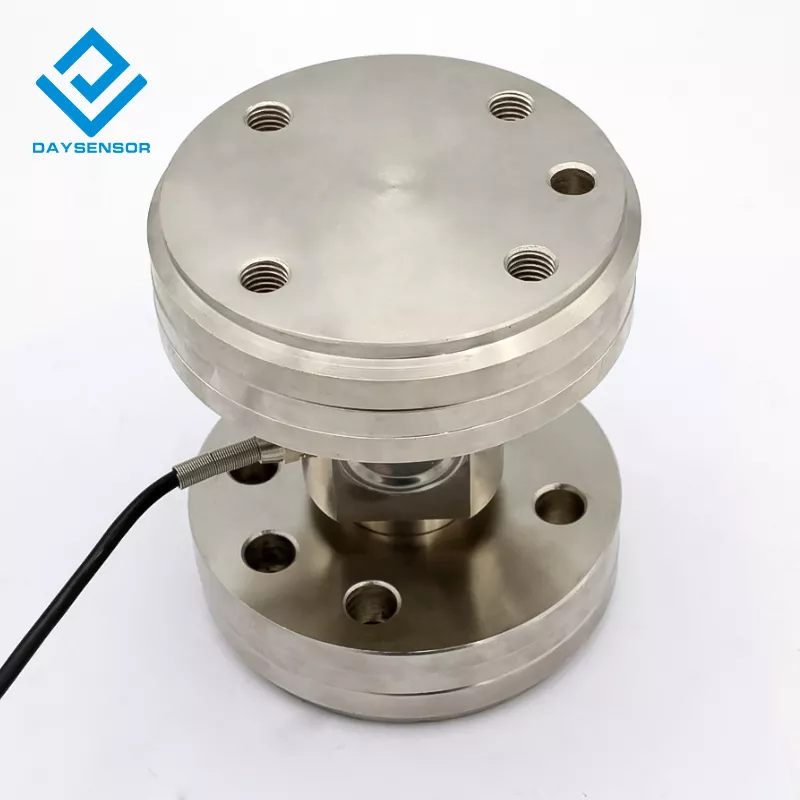

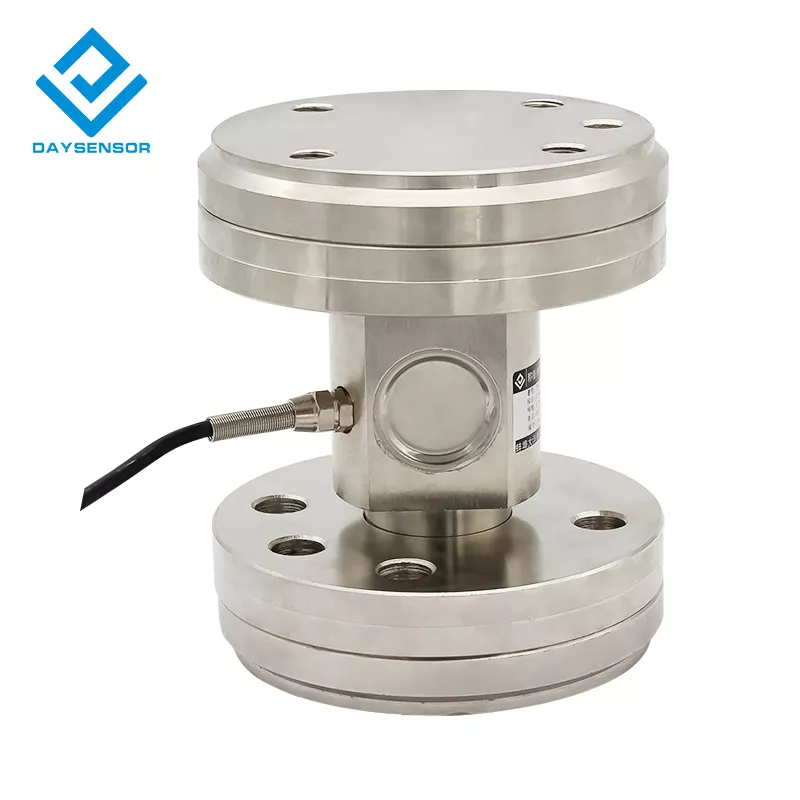

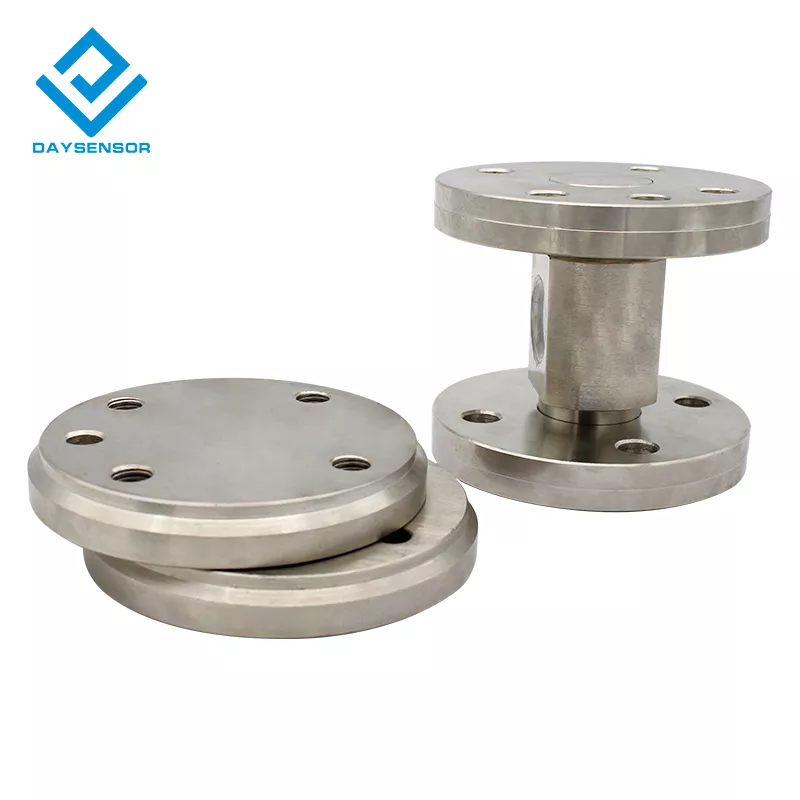

The DYZ-013 Column Type Load Cell is a robust and versatile flange mounted force sensor designed for heavy-duty weighing applications in various industrial settings. Its compact structure and high accuracy make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment.

Key Features:

  • Robust Construction: The upper and lower flanges are fixed, ensuring a compact and stable structure.
  • High Accuracy: Provides precise and reliable force measurements with good long-term stability.
  • Durable Material: Made of high-quality alloy steel with nickel plating for enhanced durability and corrosion resistance.
  • Versatile Applications: Suitable for various industries and applications, including rail weighbridges, bucket scales, and platform scales.
  • Easy Installation: Designed for straightforward integration into various systems.

Technical Specifications:

Parameter Value
Range 0-30T
Material Alloy Steel
Output Sensitivity 1.0-2.0 ± 0.05 mV/V
Impedance 350 Ω
Zero point output + 1 %FS
Non-linearity 0.1 %FS
Hysteresis 0.1 %FS
Repeatability 0.05 %FS
Creep (30 min) 0.05 %FS
Temperature Sensitivity Drift 0.05 %FS / 10 °C
Zero point Temperature Drift 0.05 %FS / 10 °C
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Service voltage 5 - 15 Vdc
Operating Temperature Range -20 - 80 °C
Safe Overload 150%
Extreme Overload 200%
Cable 5 core x 3m
Cable Limit Tension 10 kg
Response Frequency 10 kHz
TEDS N/A



Dimensions:
