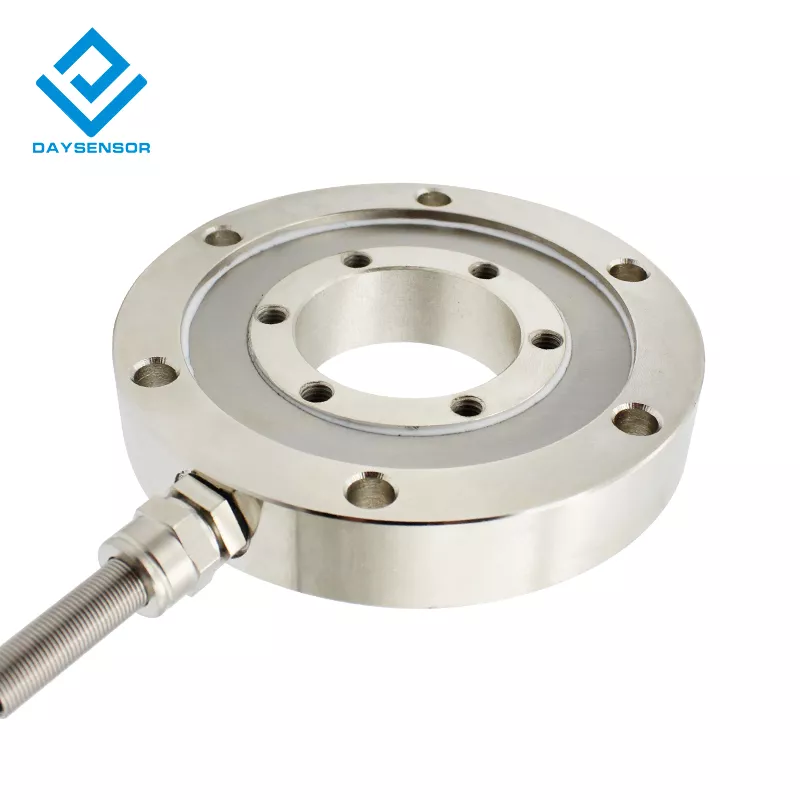

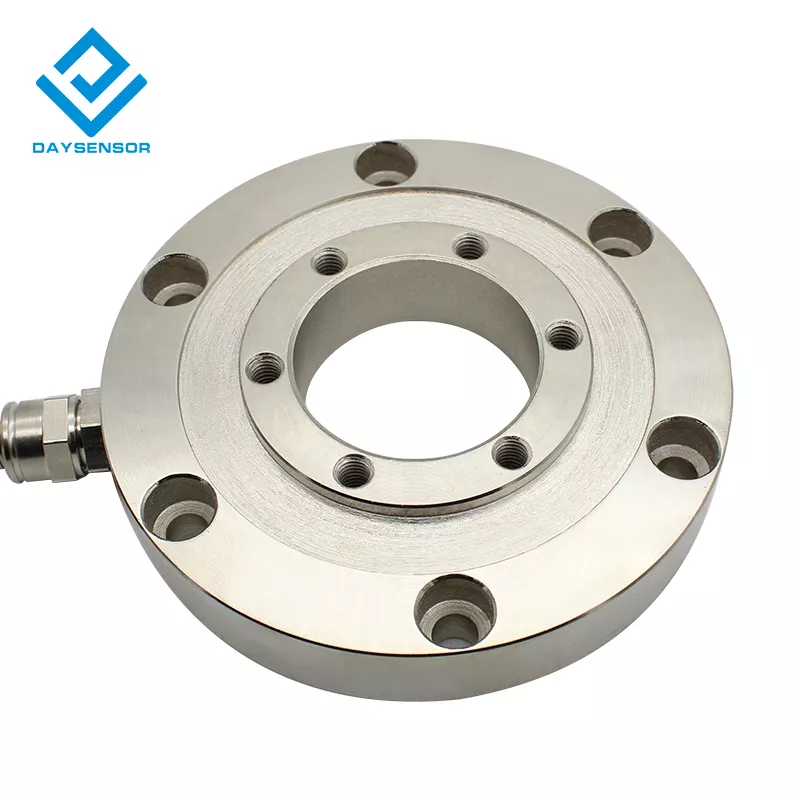

DYHX-003 Bolt Tension Sensor (50 kg - 5 ton)

SUPPORT
DatasheetWiring Diagram

Stock

Out of Stock| Available on backorder

Order Product

$1,025.00 NZD
$1,025.00 NZD
Sale Sold out

The DYHX-003 Bolt Pre-tension Sensor is a specialized load cell designed for measuring and monitoring the axial pre-tension force of bolt connections in various industrial applications. This sensor helps to ensure the reliability and safety of bolted joints by preventing bolt loosening or overtightening. The DYHX-003 is constructed from high-quality alloy steel and features a compact design, making it suitable for various applications where space is limited.

Key Features

  • Measures axial pre-tension force of bolt connections.
  • Improves the reliability and safety of bolted joints.
  • Prevents bolt loosening or overtightening.
  • Compact design for limited space applications.
  • High-quality alloy steel construction.
  • Suitable for various industrial and testing applications.

Technical Specifications

Parameter Value
Range 5000kg
Material Alloy Steel
Output Sensitivity 2.0 ± 10% mV/V
Impedance 1400Ω
Zero point output +2%FS
Non-linearity 0.5%FS
Hysteresis 0.3%FS
Repeatability 0.3%F.S
Creep (30 min) 0.1%FS
Temperature Sensitivity Drift 0.05%F.S./10°C
Zero point Temperature Drift 0.05%F.S./10°C
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Service voltage 5-10v
Operating Temperature Range -20-80°C
Safe overload 120%
Extreme overload 150%
Cable 5 core x 3m
Cable Limit Tension 10kg
Response frequency 10kHz

Dimensions
