DYX-309 Shear Beam Load Cell for Concrete Flexural Tensile Strength Testing (0-10kN)
Stock
SKU:INL-H-214-1
Order Product
Regular price
$1,500.00 NZD
Regular price
Sale price
$1,500.00 NZD
Unit price
per
Couldn't load pickup availability

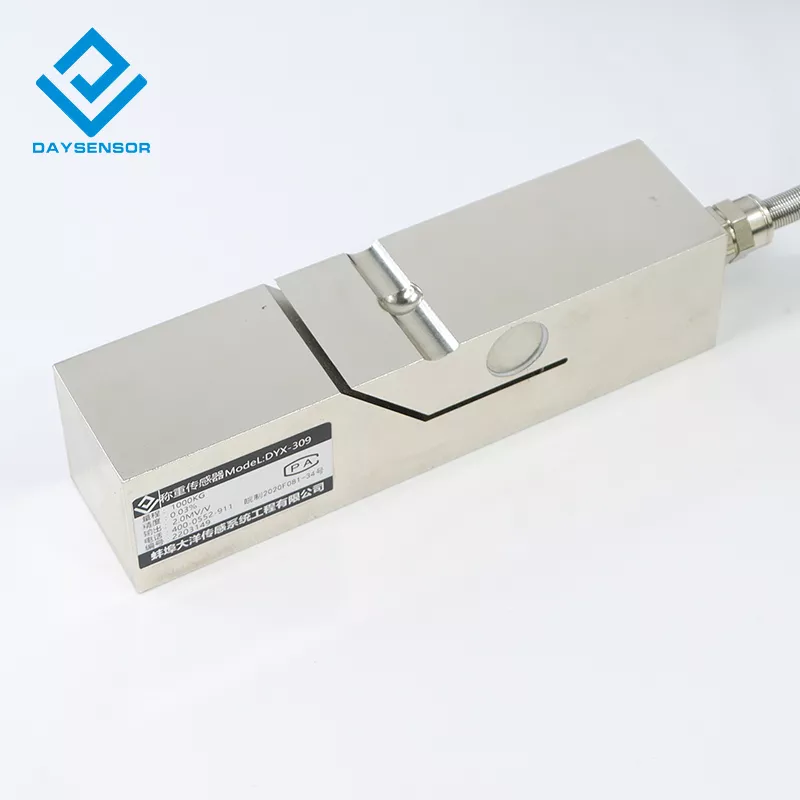

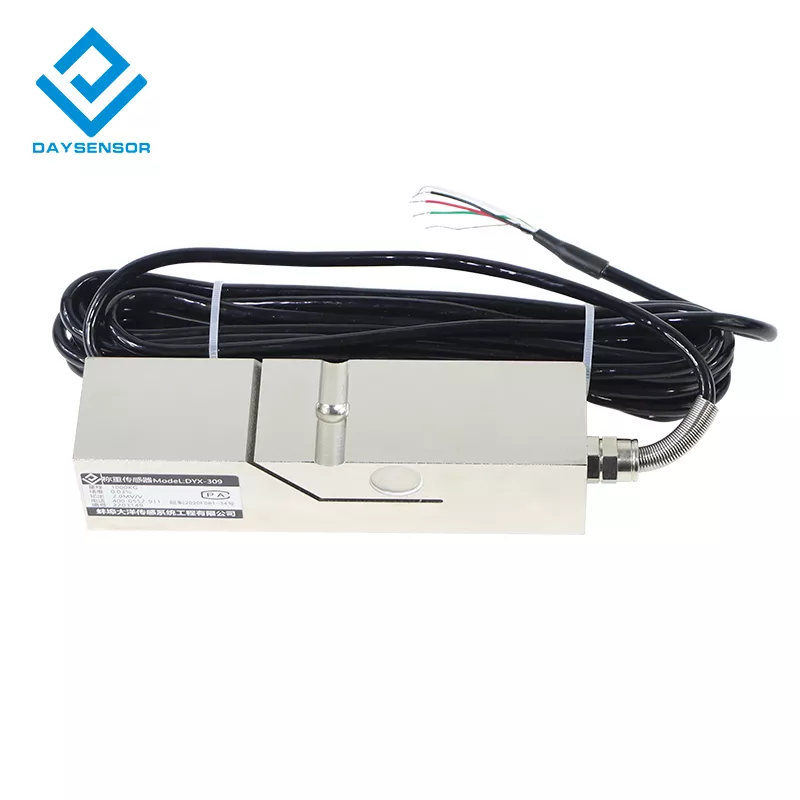

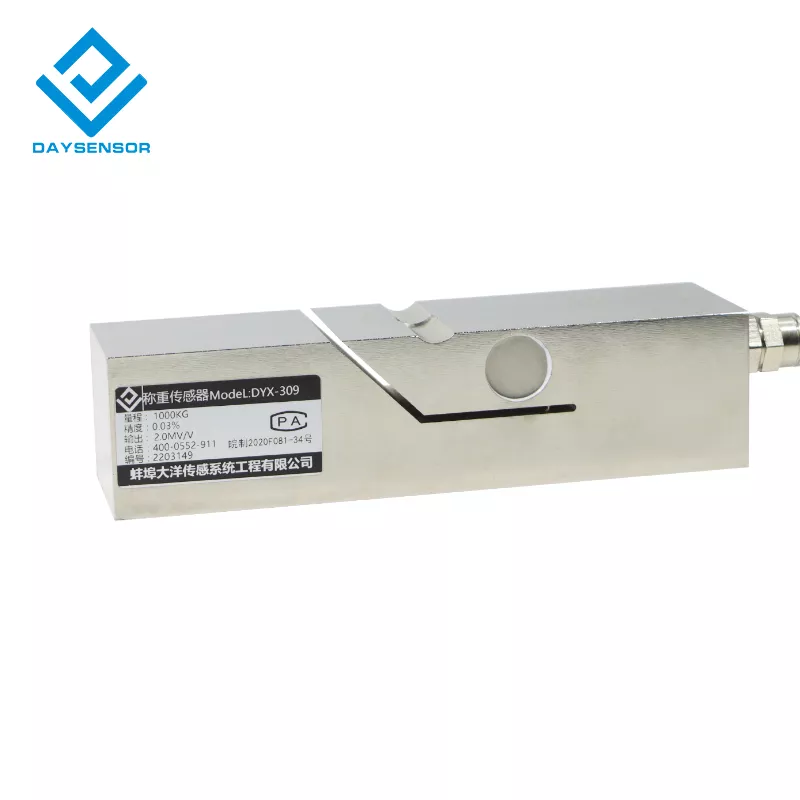

The DYX-309 Shear Beam Load Cell is a specialized force sensor designed for high-precision measurement in concrete flexural tensile strength testing machines. Its shear beam structure and durable alloy steel construction ensure accurate and stable performance, providing reliable measurements for evaluating the bending strength of concrete and other materials.
Key Features
- Specialized Design: Optimized for use in cement and concrete flexural tensile strength testing machines.
- Accurate and Reliable: Shear beam structure ensures precise and consistent measurements for determining bending strength.
- Durable Construction: Alloy steel material offers excellent strength and resistance to deformation, ensuring long-lasting performance.
- Compact and Easy to Install: Designed for convenient integration into testing machines.
- Wide Range of Applications: Suitable for testing the bending strength of cement, concrete, and other materials.
Technical Specifications
| Parameter | Value |
| Range | 0-10kN |
| Measurement Type | Tension and Compression |
| Material | Alloy Steel |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 120% |
| Extreme Overload | 200% |
| Output Sensitivity | 2.0 ± 0.05 mV/V |
| Excitation Voltage | 5 - 15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Cable | 5 core x 3m |
| Creep (30 min) | 0.05 %FS |
| Zero Point | ± 1 %FS |
| Non-linearity | 0.05 %FS |
| Hysteresis | 0.05 %FS |
| Repeatability | 0.05 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS / 10 °C |
| Sensitivity Temperature Drift per 10 °C | 0.05 %FS / 10 °C |
| Response Frequency | 10 kHz |
Dimensions
