DYX-306 Single Point Shear Beam Load Cell (0.3 - 1000 kg)
Stock
SKU:INL-H-207-01
Order Product
Regular price
$200.00 NZD
Regular price
Sale price
$200.00 NZD
Unit price
per
Couldn't load pickup availability
The DYX-306 Single Point Shear Beam Load Cell is a versatile and cost-effective solution for high-precision force measurement in a variety of industrial applications. This load cell offers a simple structure, convenient installation, and reliable performance, making it suitable for use in various weighing and force measurement systems.
Key Features
- Simple structure and convenient installation
- Reliable use and long service life
- High cost-effectiveness
- Suitable for various industrial scales and weighing equipment

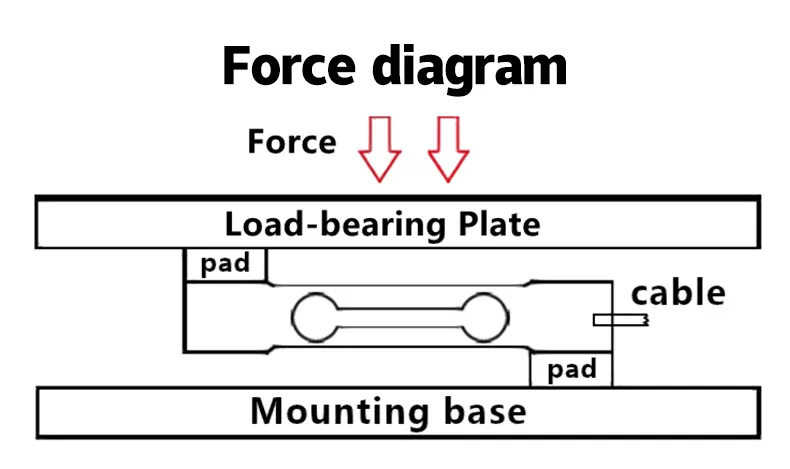

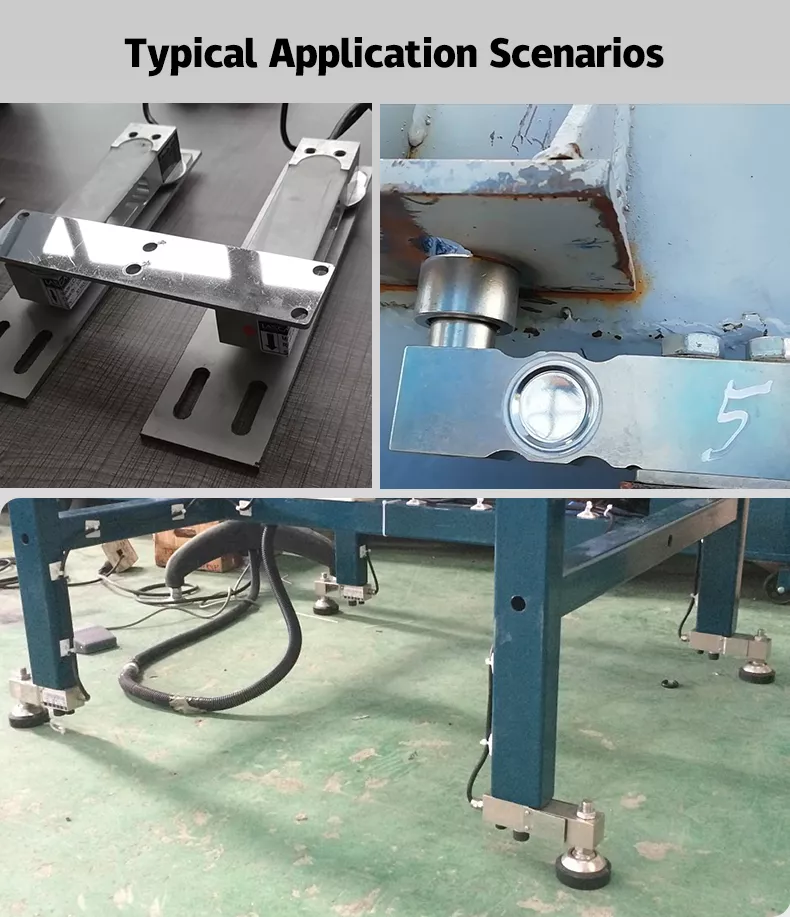

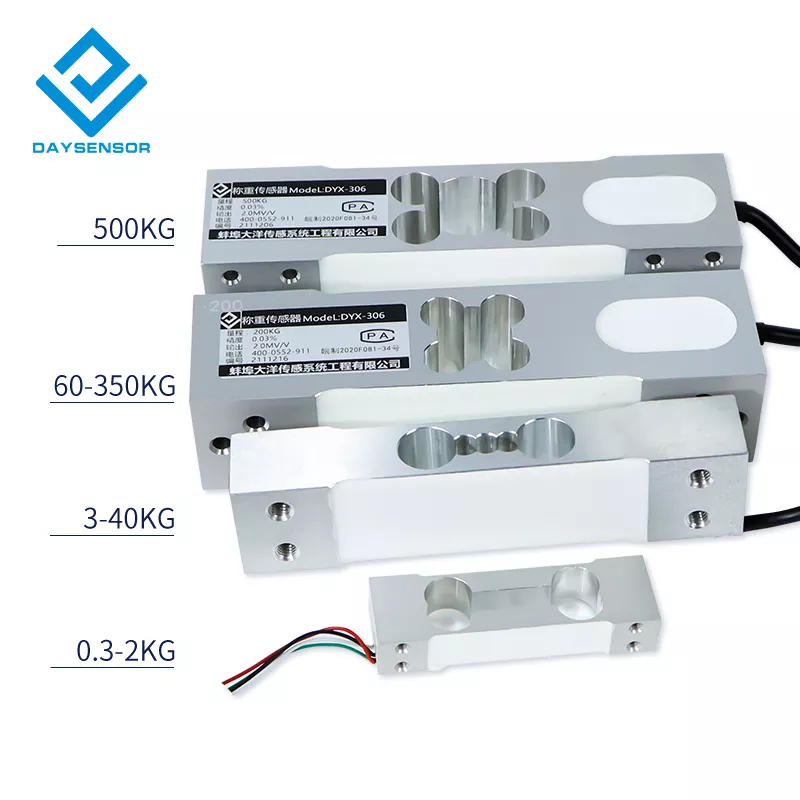

- Multiple capacity ranges available, from 0.3 kg to 500 kg
- High accuracy and stability
- Operating temperature range: -20°C to +80°C
Technical Specifications
| Parameter | Value |
| Range | 0.3 kg - 1000 kg (depending on version) |
| Measurement Type | Tension and Compression |
| Material | Aluminum Alloy |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Output Sensitivity | 2.0 ± 0.05 mV/V |
| Excitation Voltage | 5 - 15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Cable | 5 core x 3m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ± 1 %FS |
| Non-linearity | 0.02 %FS |
| Hysteresis | 0.03 %FS |
| Repeatability | 0.02 %FS |
| Zero point Temperature Drift | 0.03 %FS / 10 °C |
| Sensitivity Temperature Drift | 0.03 %FS / 10 °C |
| Response Frequency | 10 kHz |
Dimensions

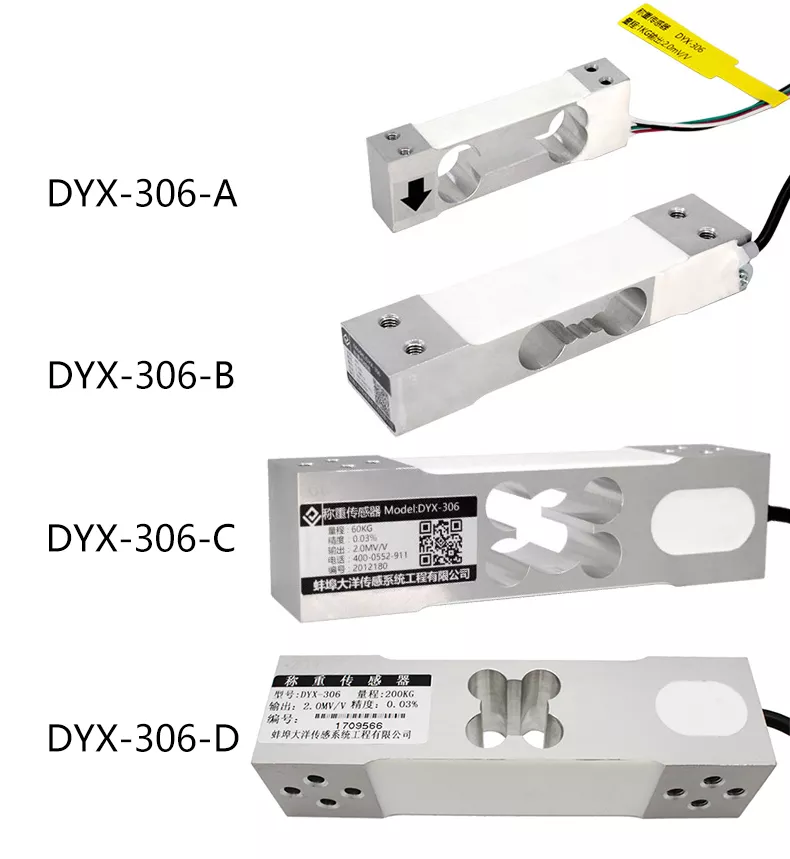

The DYX-306 Single Point Shear Beam Load Cell is available in four versions (A, B, C, and D) with different mechanical dimensions to accommodate various weight ranges. Please refer to the datasheet for detailed dimensions of each version.
