DYTSC S-Type Load Cell for Cranes (50 kg - 5 ton)
Stock
SKU:INL-S-197-01
Order Product
Regular price
$400.00 NZD
Regular price
Sale price
$400.00 NZD
Unit price
per
Couldn't load pickup availability

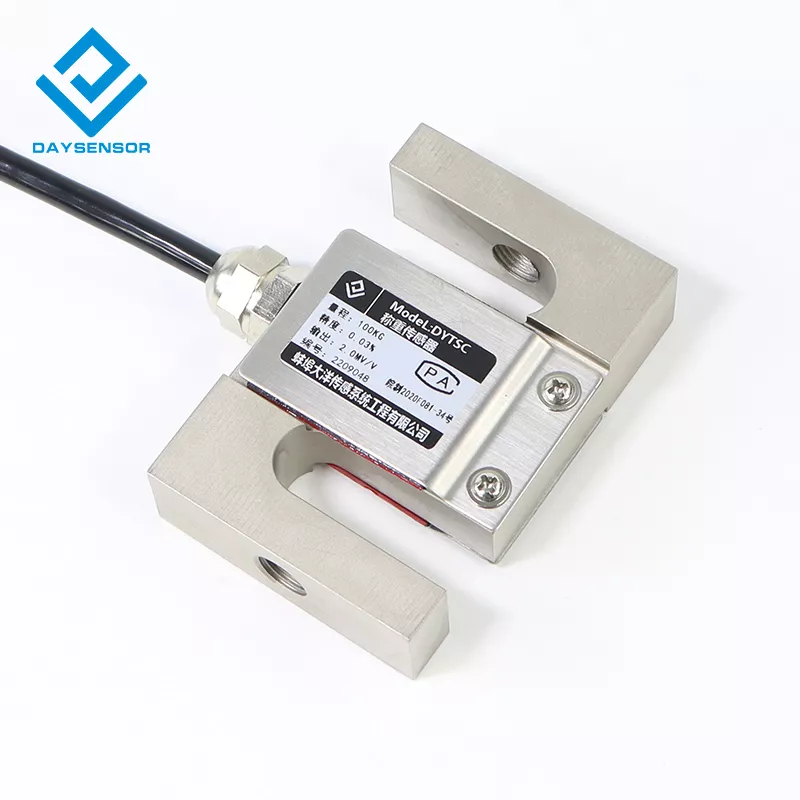

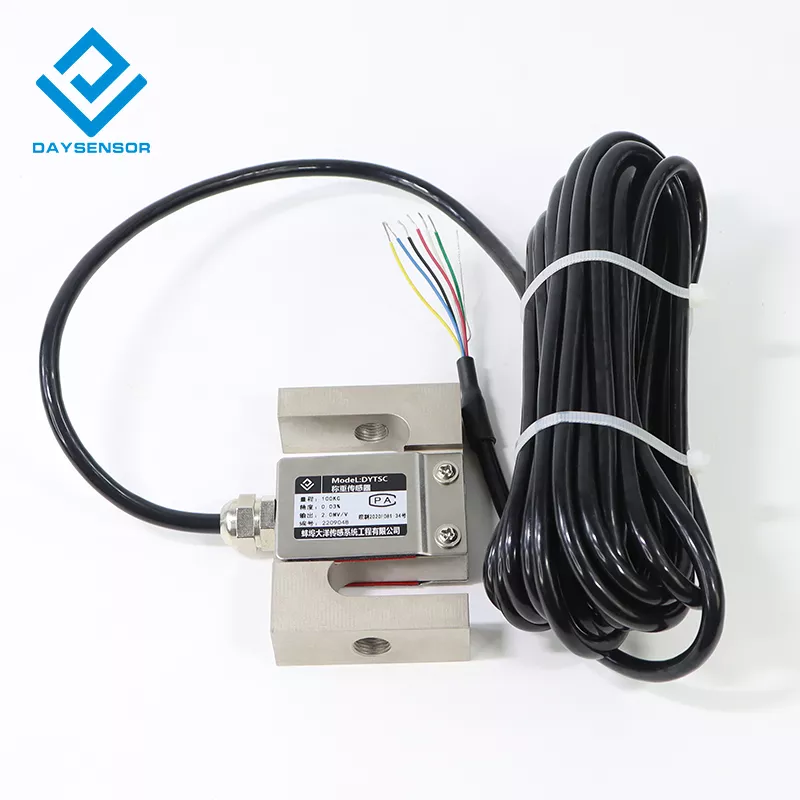

The DYTSC S-Type Load Cell is a high-precision, heavy-duty force sensor designed for tension and compression measurements in various industrial applications, such as machinery manufacturing, petrochemical processing, iron and steel metallurgy, and aerospace. This robust sensor is constructed from alloy steel for enhanced durability and features a compact design for easy integration into diverse systems. This model is designed particularly with cranes and overhead loads in mind and comes with a generous 6m cable.
Key Features:
- Measures force in tension and compression.

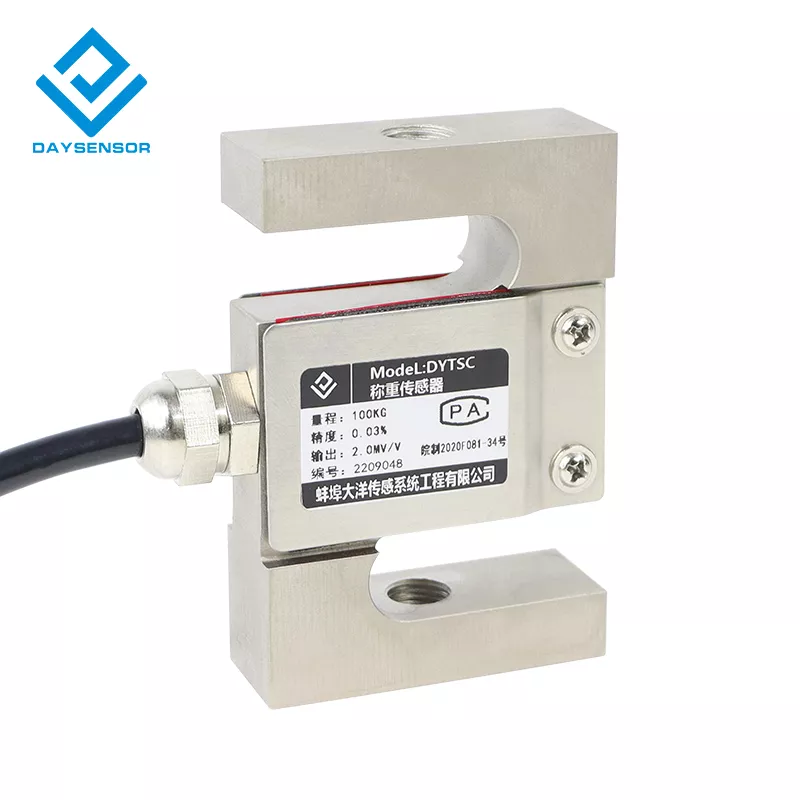

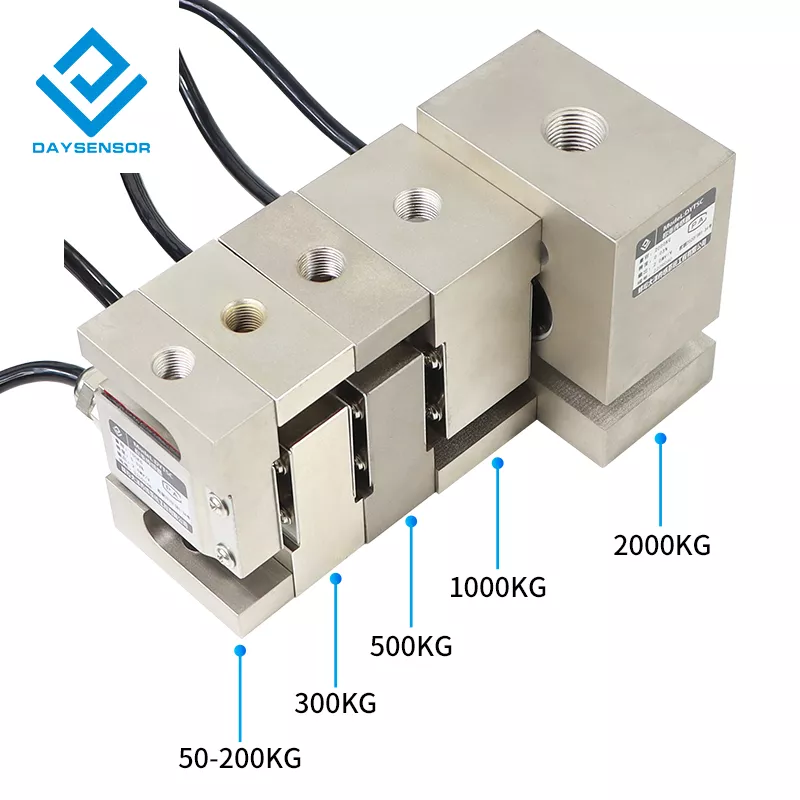

- Wide range of capacities available, from 50 kg to 5 tons.
- High accuracy and stability, with non-linearity of 0.03%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
Technical Specifications:
| Parameter | Value |
| Range | 50kg-5T (according to selection) |
| Measurement Type | Tension and Compression |
| Mounting | S-type load cell with female thread (M10~M20) |
| Material | Alloy Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 300% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 2.0-3.0 ±10% mV/V |
| Excitation Voltage | 5~15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | 5 core x 6m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ±1 %FS |
| Non-linearity | 0.03 %FS |
| Hysteresis | 0.03 %FS |
| Repeatability | 0.03 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS |
Dimensions:
| Range (kg) | W | T |
| 50, 100, 200 | 18.5 | M10X1 |
| 300 | 24.4 | M10X1 |
| 500 | 24.4 | M12X1 |
| 1000 | 36 | M12X1 |
| 2T | 70 | M16x1.5 |
| 3T | 80 | M18x1.5 |
| 5T | 92 | M20x2 |
