DYQ-101 Wheel/Axle Load Cell (500kg-30 ton)
Stock
SKU:
Order Product
Regular price
$925.00 NZD
Regular price
Sale price
$925.00 NZD
Unit price
per
Couldn't load pickup availability

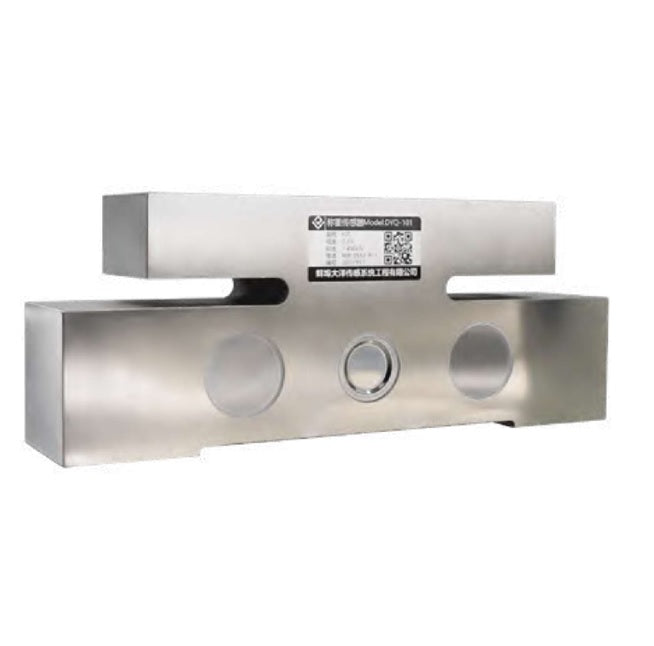

The DYQ-101 Wheel/Axle Load Cell is a robust and reliable force sensor designed specifically for heavy-duty weighing applications, such as truck scales, rail weighbridges, and axle weight scales. Its durable alloy steel construction and unique design ensure accurate and stable performance under substantial loads and challenging industrial environments.
Key Features
- Measures force in compression.
- Wide range of capacities available, from 1 to 30 tons.
- High accuracy and stability.
- Alloy steel construction for durability.
- Operating temperature range: -20°C to +60°C.
- Simple installation.
- Good anti-load performance and inherent linearity.
- Suitable for various heavy-duty weighing applications.
Technical Specifications
| Parameter | Value |
| Range | 1 - 30 tons |
| Measurement Type | Compression |
| Material | Alloy Steel |
| Operating Temperature Range | -20 - 60 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Output Sensitivity | 1.0 ± 0.05 mV/V |
| Excitation Voltage | 5 - 15 Vdc |
| Impedance | 700 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Cable | 5 core x 5m |
| Creep (30 min) | 0.1 %FS |
| Zero Point | ± 1 %FS |
| Non-linearity | 0.2 %FS |
| Hysteresis | 0.2 %FS |
| Repeatability | 0.1 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS / 10 °C |
| Sensitivity Temperature Drift per 10 °C | 0.03 %FS / 10 °C |
| Response Frequency | 10 kHz |
Dimensions
| Parameter | 1-5 T | 10-20 T | 30 T |
| A | 220 | 240 | 240 |
| B | 140 | 180 | 180 |
| C | 110 | 120 | 120 |
| D | 186 | 192 | 192 |
| E | 45 | 50 | 56 |
| H | 85 | 93 | 102 |
| M1 | M16 | M20 | M20 |
| M2 | M12 | M16 | M16 |
| F | 20 | 30 | 30 |
