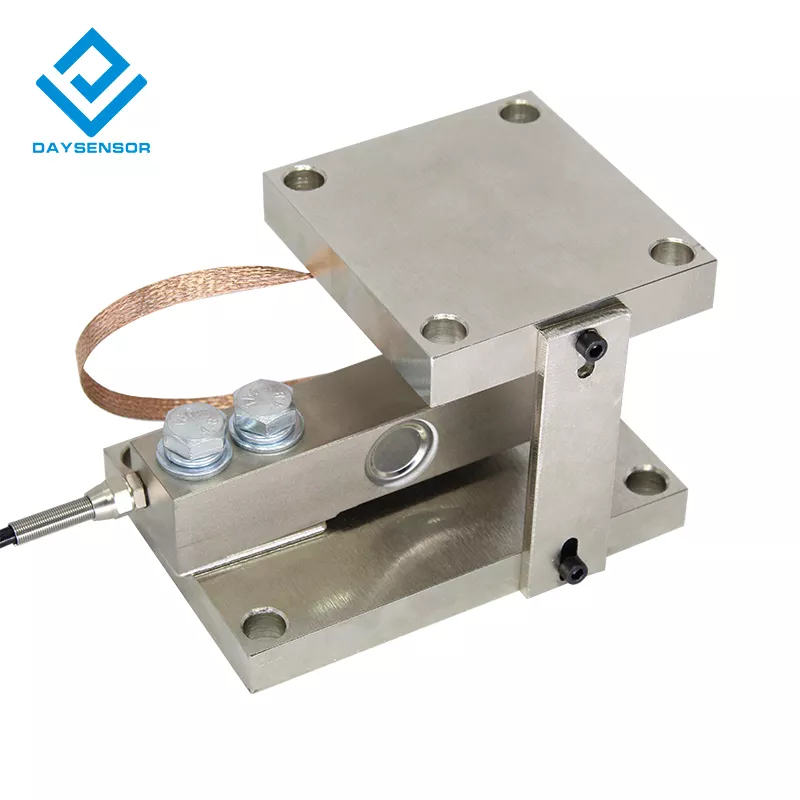

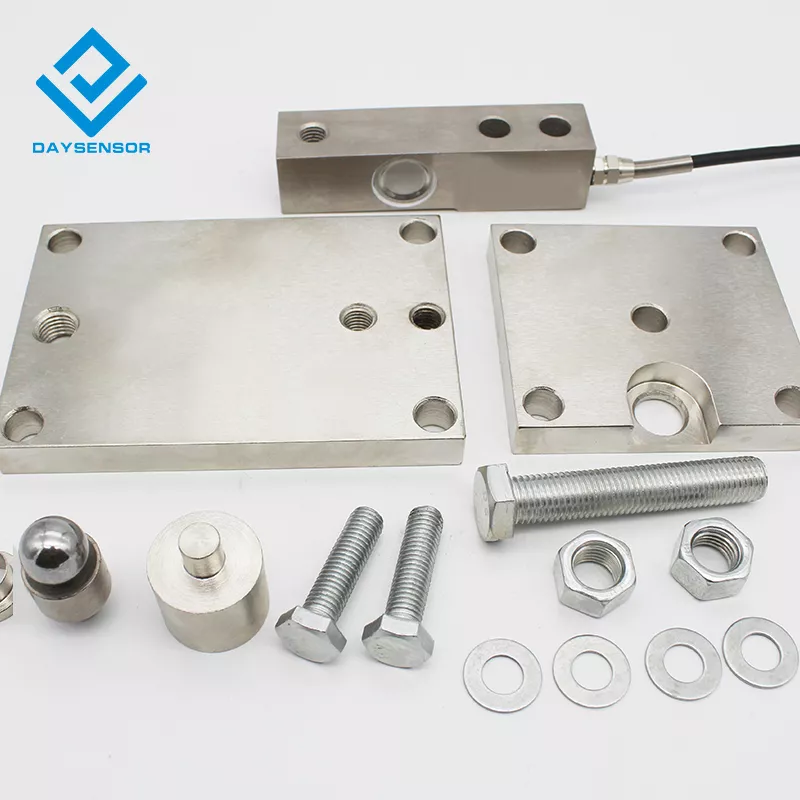

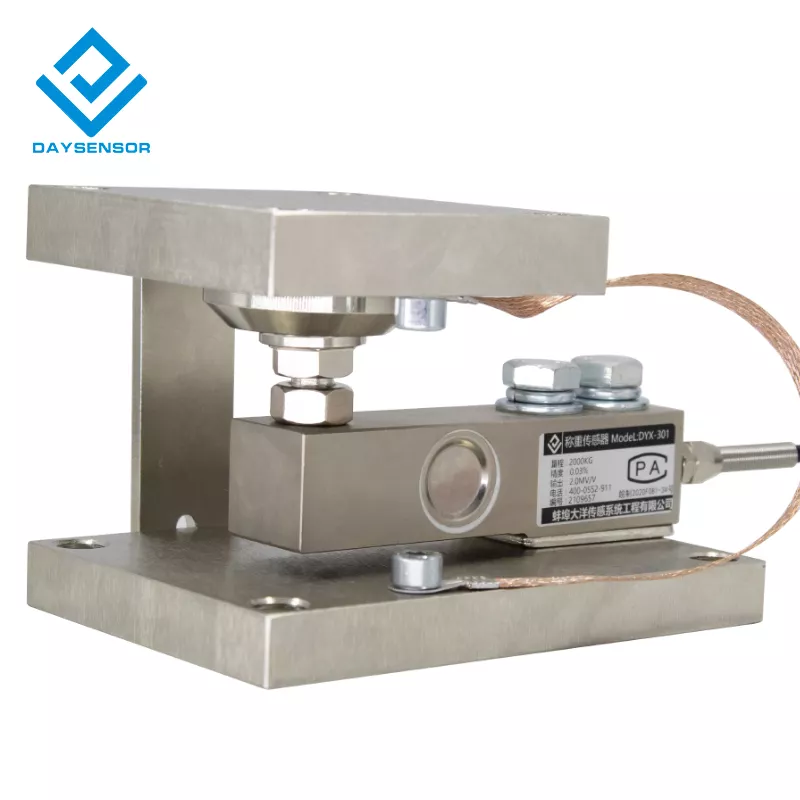

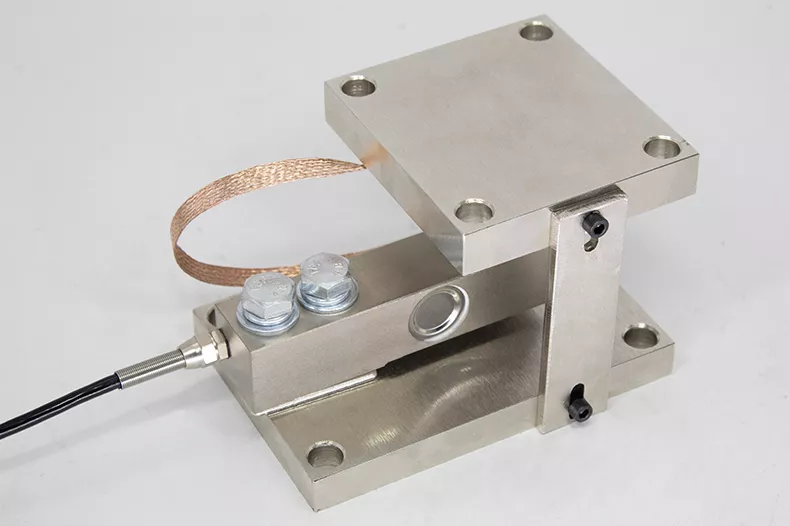

DYMK-001 Weighing Module (30 kg - 5 ton)
Stock
SKU:INL-W-221-01
Order Product
Couldn't load pickup availability

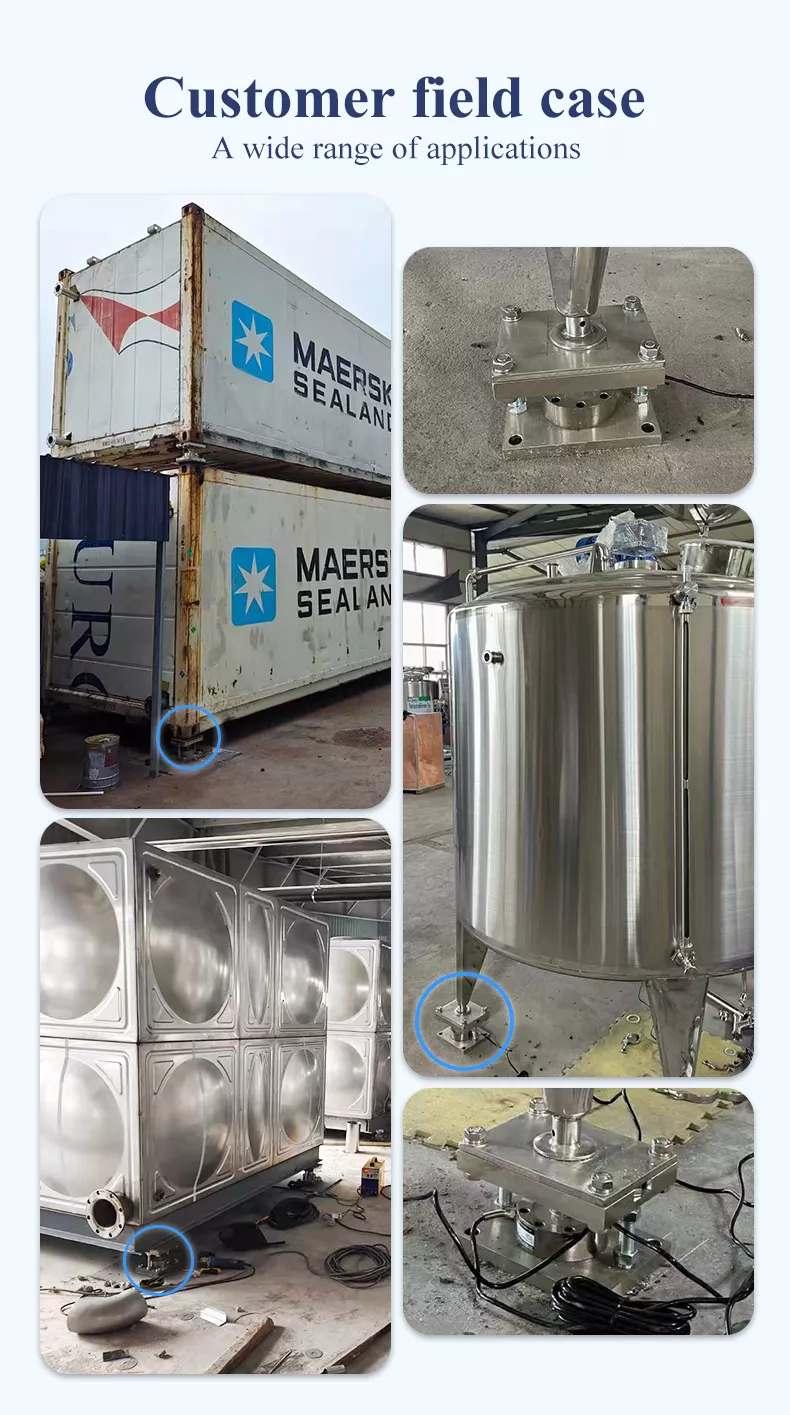

The DYMK-001 Weighing Module is a robust and versatile solution designed for high-precision weighing applications in various industrial settings. It is commonly used in industries such as food processing, pharmaceuticals, and chemicals, where accurate measurement of large quantities of materials is critical. This module is typically installed on silos, tanks, hoppers, and other large containers to monitor their weight and manage inventory effectively.
The DYMK-001 features a cantilever beam weighing sensor, offering simple installation and reliable performance. It is constructed from alloy steel, ensuring durability and stability in demanding environments.
Key Features:
- High Capacity: Measures a wide range of weights, from 100 kg to 15 tons.
- Robust Construction: Alloy steel material provides excellent durability and stability.
- Accurate and Reliable: Cantilever beam design ensures precise and consistent measurements.
- Easy Installation: Designed for straightforward integration into various weighing systems.
- Versatile Applications: Suitable for weighing silos, tanks, hoppers, and other large containers in various industries.
Technical Specifications:
| Parameter | Value |
| Range | 0-15T |
| Material | Alloy Steel |
| Output Sensitivity | 2.0 ± 10% mV/V |
| Zero point output | + 2 %FS |
| Non-linearity | 0.1 %FS |
| Hysteresis | 0.1 %FS |
| Repeatability | 0.1 %FS |
| Creep (30 min) | 0.05 %FS |
| Temperature Sensitivity Drift | 0.05 %FS / 10 °C |
| Zero point Temperature Drift | 0.05 %FS / 10 °C |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 10 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 120% |
| Extreme Overload | 150% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
Dimensions:
| Parameter | 0.1-2 T | 3-5 T | 10-15 T |
| A | 100 | 150 | 180 |
| A1 | 80 | 122 | 140 |
| B | 110 | 110 | 140 |
| B1 | 90 | 80 | 100 |
| C | 110 | 110 | 140 |
| C1 | 90 | 80 | 100 |
| L | 160 | 228 | 290 |
| L1 | 140 | 200 | 250 |
| H | 110 | 131 | 157.5 |
| H1 | 20 | 26.5 | 30 |
| H2 | 16 | 24.5 | 30 |
| Y | 13 | 13 | 22 |
| Z | 13 | 13 | 22 |
