DYLY-108 Miniature S-Type Load Cell (0.5-200 kg)

SUPPORT
DatasheetWiring Diagram

Stock

INL-S-195-01

Out of Stock| Available on backorder

Order Product

$175.00 NZD
$175.00 NZD
Sale Sold out

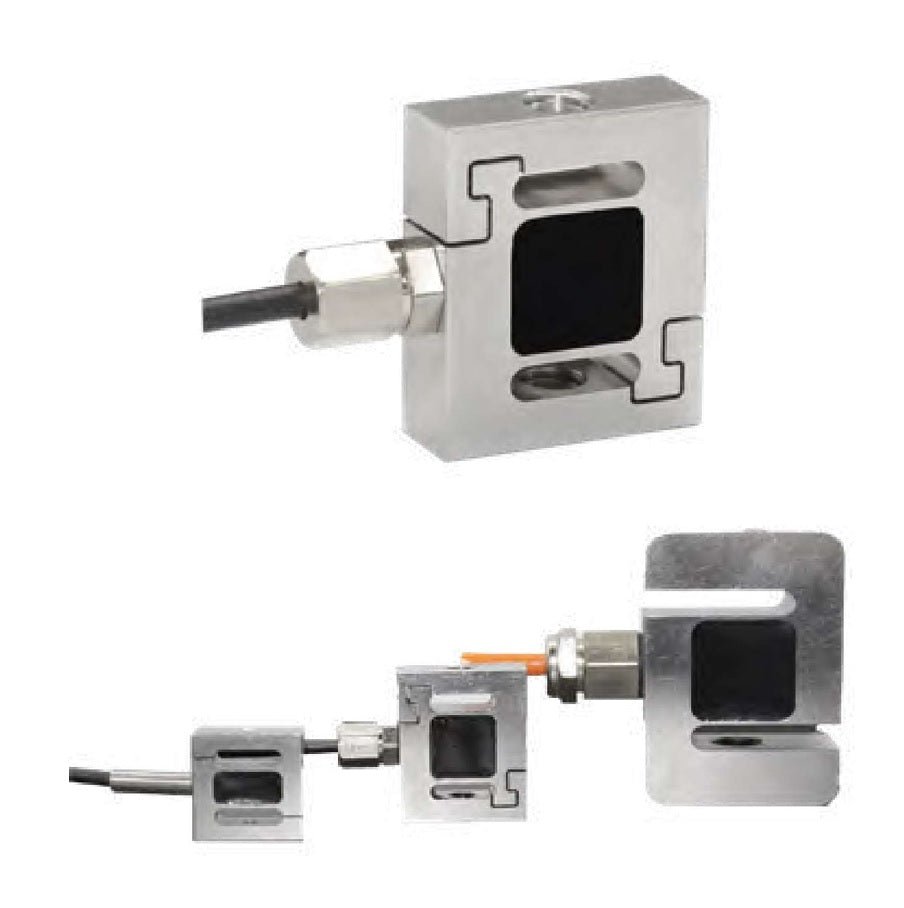

The DYLY-108 S-Type Load Cell is a miniature, high-accuracy force sensor designed for tension and compression measurements in various applications, such as automated assembly, 3C product testing, robot hand grip testing, and keyboard feel testing. This compact sensor is constructed from stainless steel for enhanced durability and features a lightweight design for easy integration.

Key Features:

  • Measures force in tension and compression.
  • Wide range of capacities available, from 0.5 to 200 kg.
  • High accuracy and stability, with non-linearity of 0.1%FS.
  • Operating temperature range: -20°C to +80°C.
  • Simple installation with threaded ends.



Technical Specifications:

Parameter Value
Range 5~2000N (according to selection)
Measurement Type Tension and Compression
Mounting S-type load cell with female thread (M3~M8)
Material Stainless Steel
Operating Temperature Range -20~80 °C
Safe Overload 150%
Extreme Overload 200%
Frequency Response 10 kHz
Output Sensitivity 1.0~2.0 mV/V
Excitation Voltage 5~10 Vdc
Impedance 350 Ω
Insulation Resistance ≥5000 MΩ @100 Vdc
Cable <100kg: φ2x1m, >100kg: φ3x2m
Creep (30 min) 0.05 %FS
Zero Point ±2 %FS



Dimensions:

Range (kg) M H A B
0.5-10 M3 5 16 19.1
20-50 M4 6 16 19.1
100-200 M8 14 26 40
