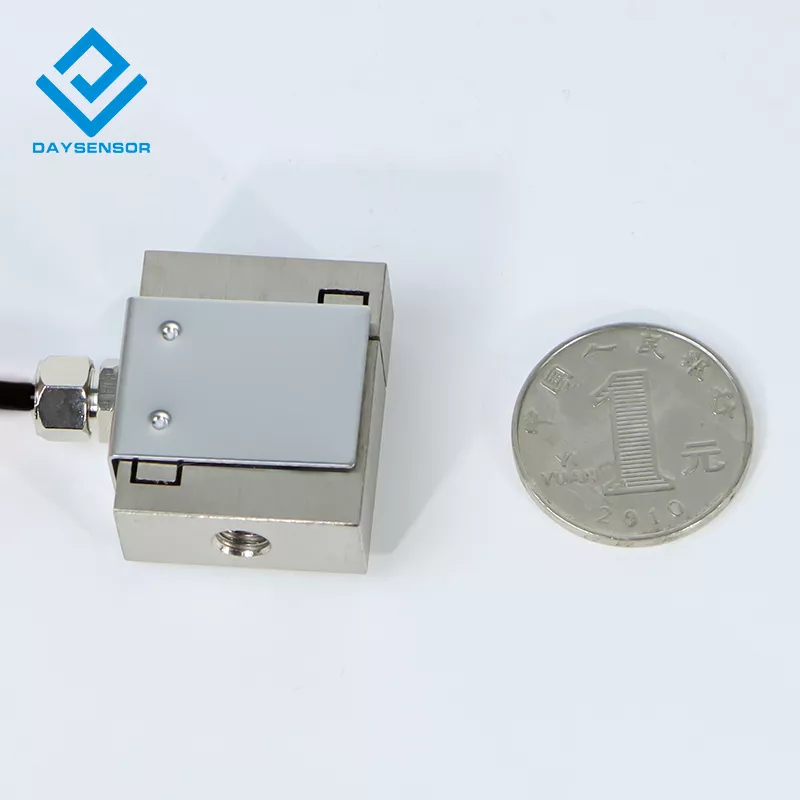

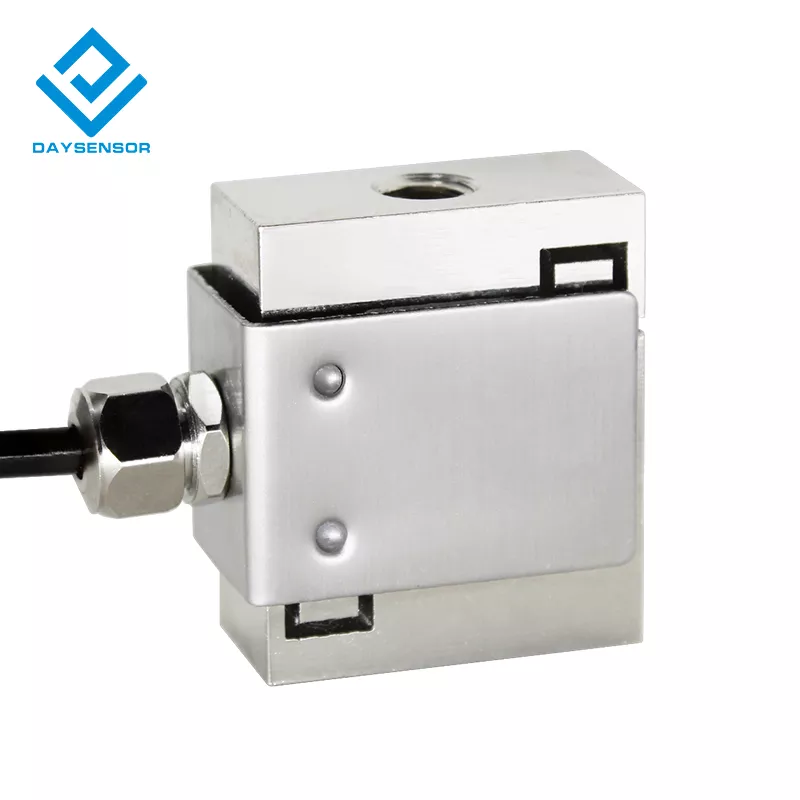

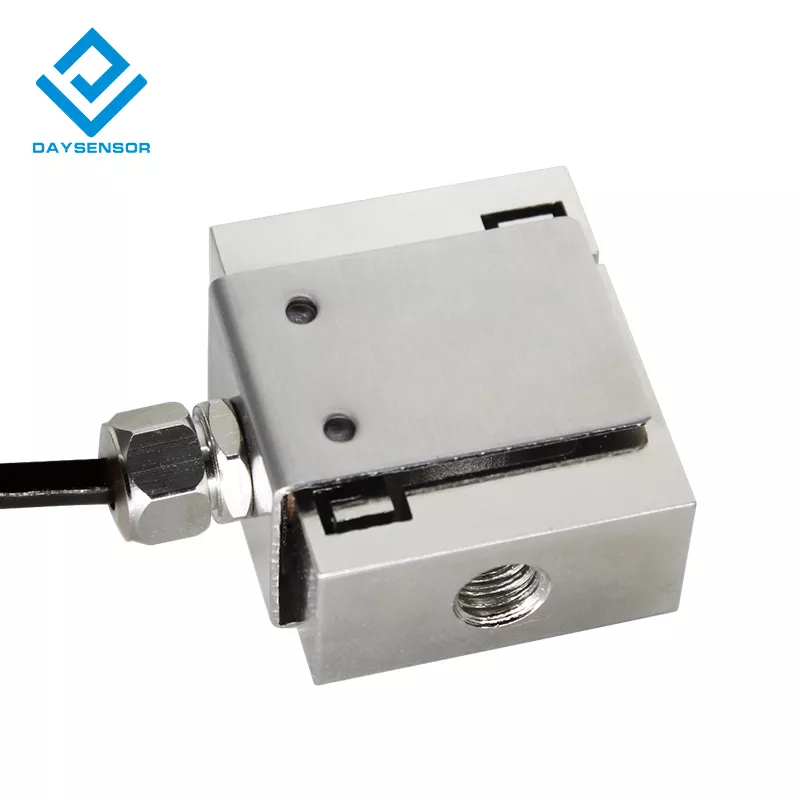

DYLY-106 Miniature S-Type Load Cell (0.5-100 kg)

SUPPORT
DatasheetWiring Diagram

Stock

Out of Stock| Available on backorder

Order Product

$150.00 NZD
$150.00 NZD
Sale Sold out

The DYLY-106 S-Type Load Cell is a high-accuracy, miniature force sensor designed for tension measurements in applications requiring compact size and precise performance, such as in 3C product testing, automated assembly, robot grip testing, and keyboard feel testing. This miniature sensor is constructed from alloy steel for durability and features a lightweight design for easy integration.

Key Features:

  • Measures force in tension.
  • Wide range of capacities available, from 0.5 to 100 kg.
  • High accuracy and stability, with non-linearity of 0.03%FS.
  • Operating temperature range: -20°C to +80°C.
  • Simple installation with threaded ends.



Technical Specifications:

Parameter Value
Range 0.5~100 kg (according to selection)
Measurement Type Tension
Mounting S-type load cell with female thread (M6)
Material Alloy Steel
Operating Temperature Range -20~80 °C
Safe Overload 150%
Extreme Overload 200%
Frequency Response 10 kHz
Output Sensitivity 1.0~2.0 mV/V
Excitation Voltage 5~15 Vdc
Impedance 350 Ω
Insulation Resistance ≥5000 MΩ @100 Vdc
Cable 5 core x 2m
Creep (30 min) 0.03 %FS
Zero Point ±1 %FS



Dimensions:
