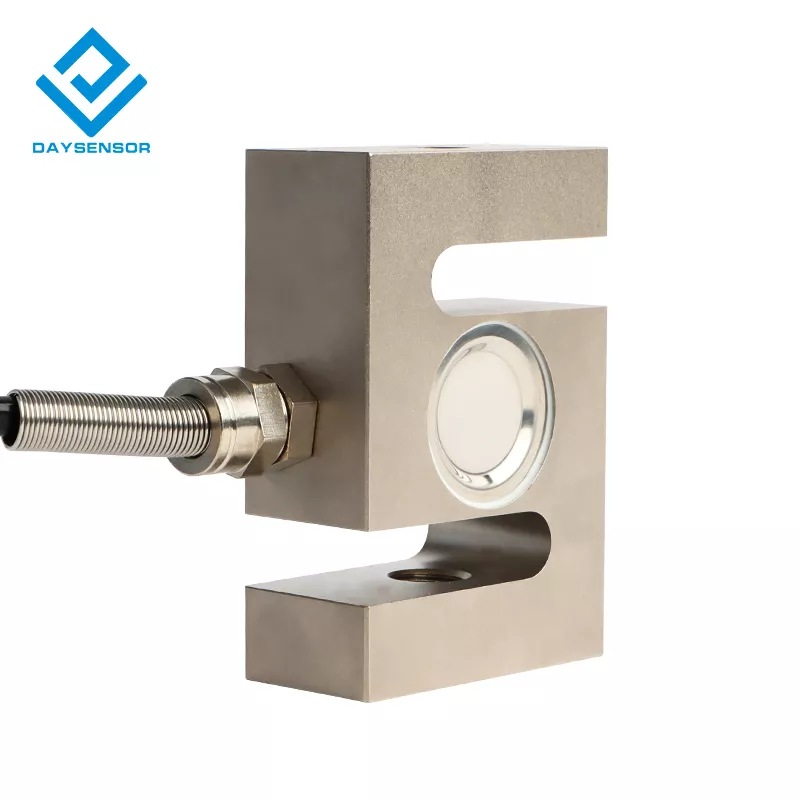

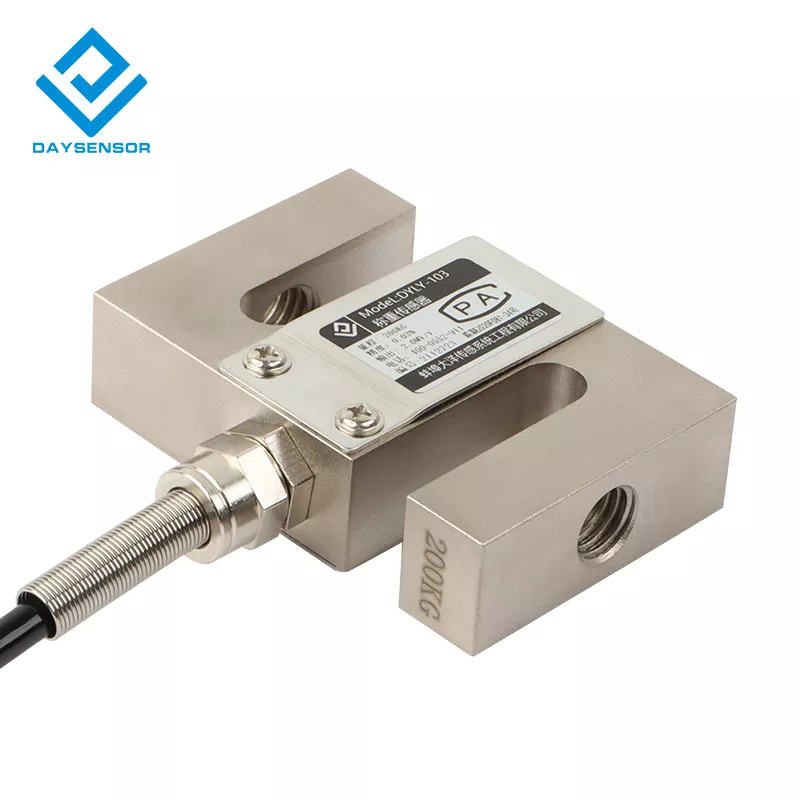

DYLY-103 S-Type Load Cell (20 kg - 5 ton)

SUPPORT
Datasheet Wiring Diagram

Stock

SKU:INL-S-190-01

Out of Stock| Available on backorder

Order Product

$225.00 NZD

Sale Sold out

Quantity

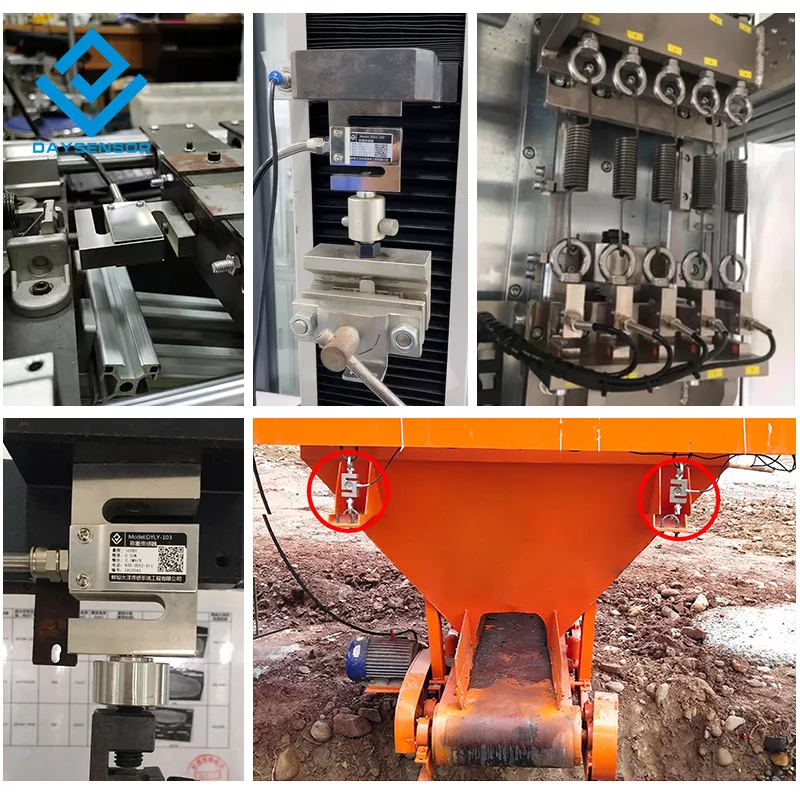

The DYLY-103 S-Type Load Cell is a high-precision, versatile force sensor designed for accurate tension and compression measurements in various industrial applications, such as machinery manufacturing (machine tools, pressure machines, injection molding machines), petrochemical processing, iron and steel metallurgy, aerospace, and more specialized applications like universal material testing machines, hopper scales, and plug force testers. This robust sensor is constructed from alloy steel for durability and features a compact design for easy integration into diverse systems.

Key Features:

Measures force in tension and compression.

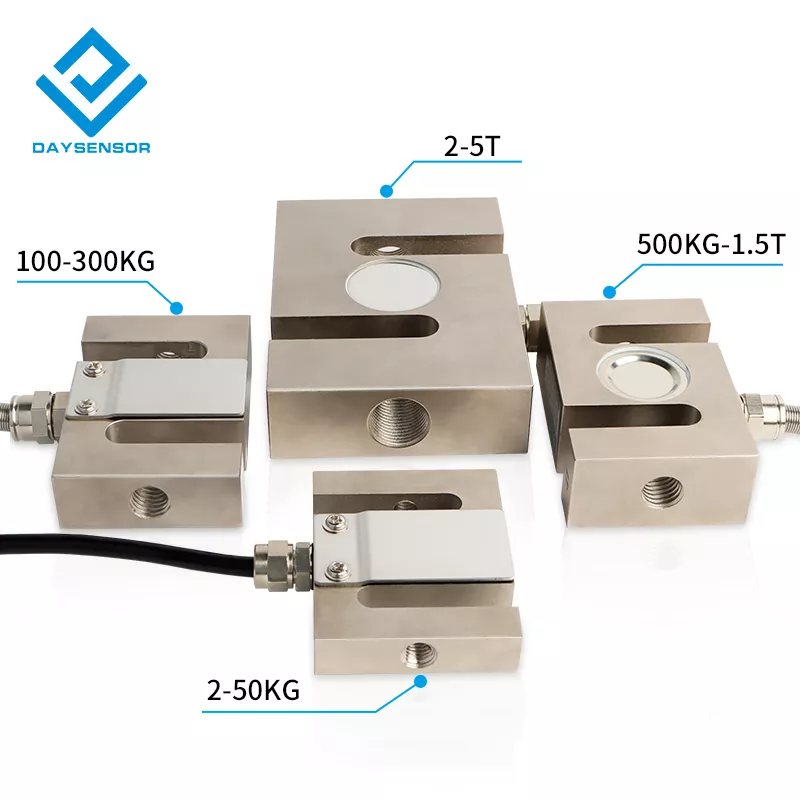

Wide range of capacities available, from 0.02 to 10 tons.
High accuracy and stability, with non-linearity of 0.03%FS.
Operating temperature range: -20°C to +80°C.
Simple installation with female threaded ends.

Technical Specifications:

Parameter	Value
Range	0.02~10 ton (according to selection)
Measurement Type	Tension or compression
Mounting	S-type load cell with female thread (M8~M18)
Material	Alloy Steel
Operating Temperature Range	-20~80 °C
Safe Overload	150%
Extreme Overload	200%
Frequency Response	10 kHz
Output Sensitivity	2.0 mV/V ±10%
Excitation Voltage	5~15 Vdc
Impedance	350 Ω
Insulation Resistance	≥5000 MΩ @100 Vdc

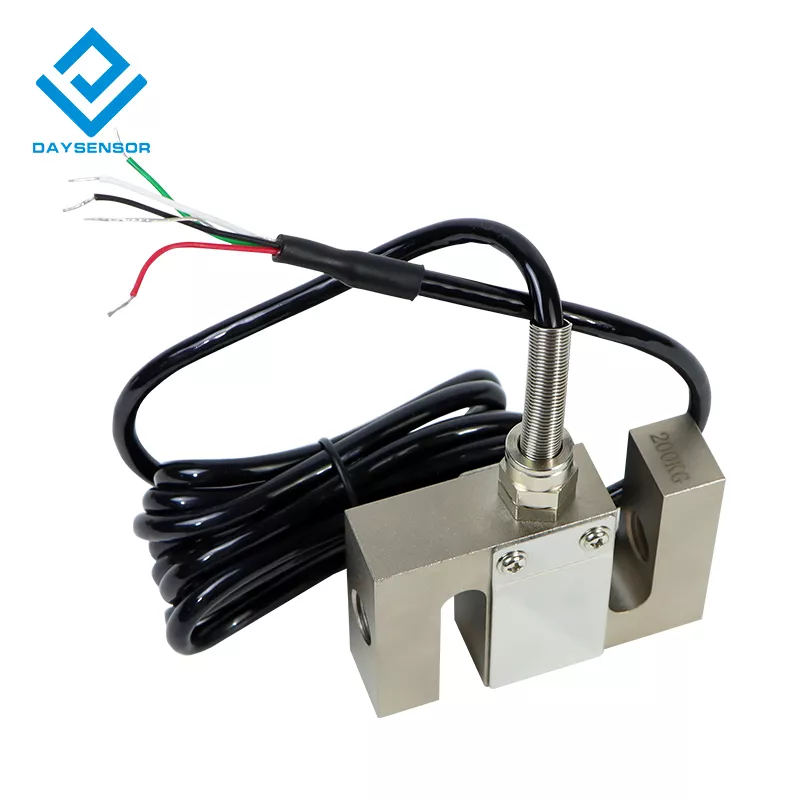

Cable	5 core. <2T = 2m cable; >2T = 5m cable
Creep (30 min)	0.03 %FS
Zero Point	±1 %FS
Non-linearity	0.03 %FS
Repeatability	0.03 %FS
Zero point Temperature Drift per 10 °C	0.05 %FS
Sensitivity Temperature Drift per 10 °C	0.03 %FS
