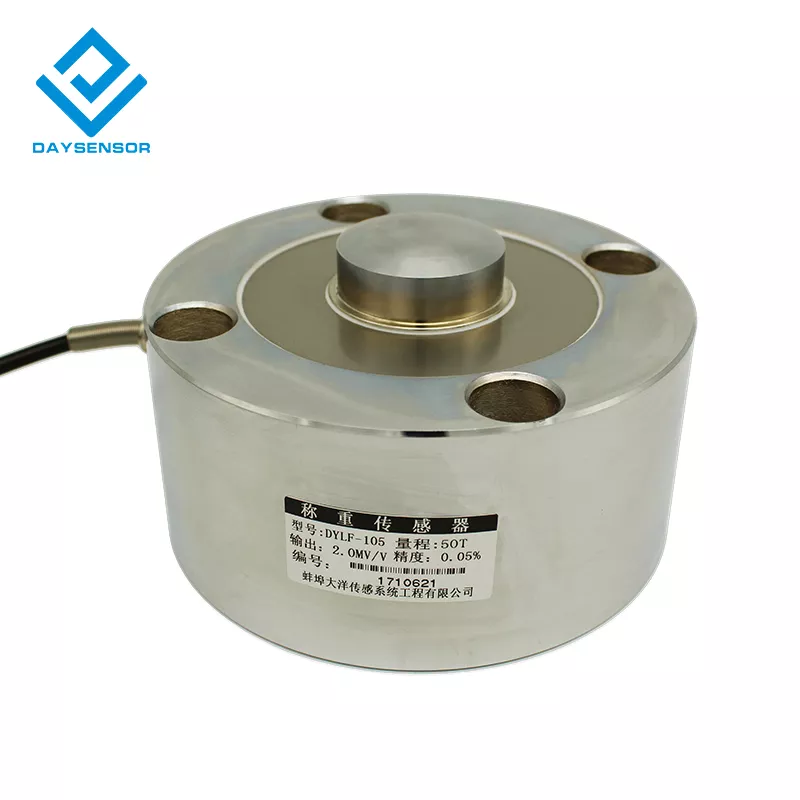

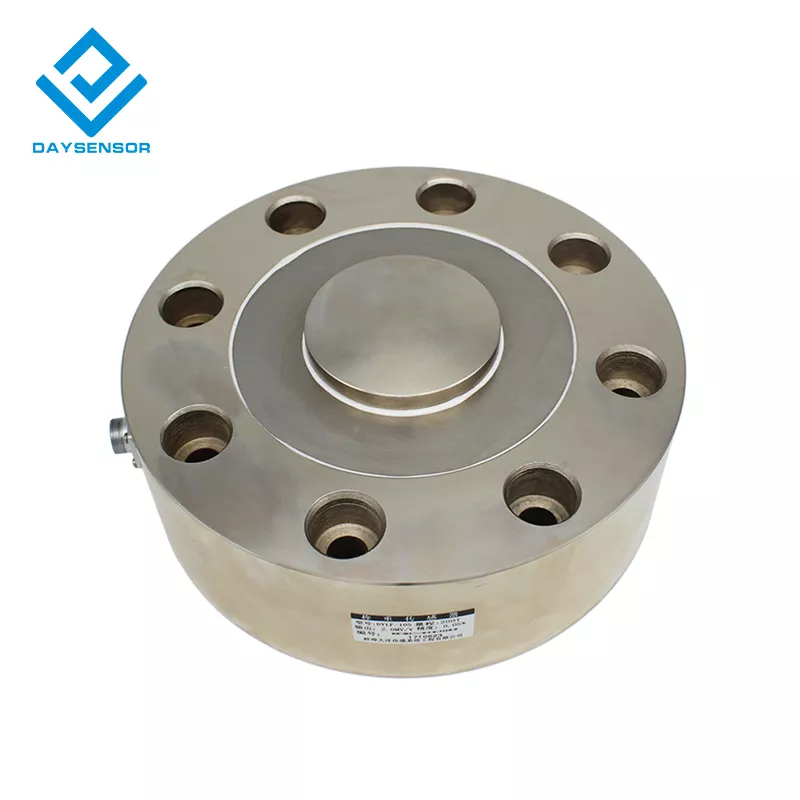

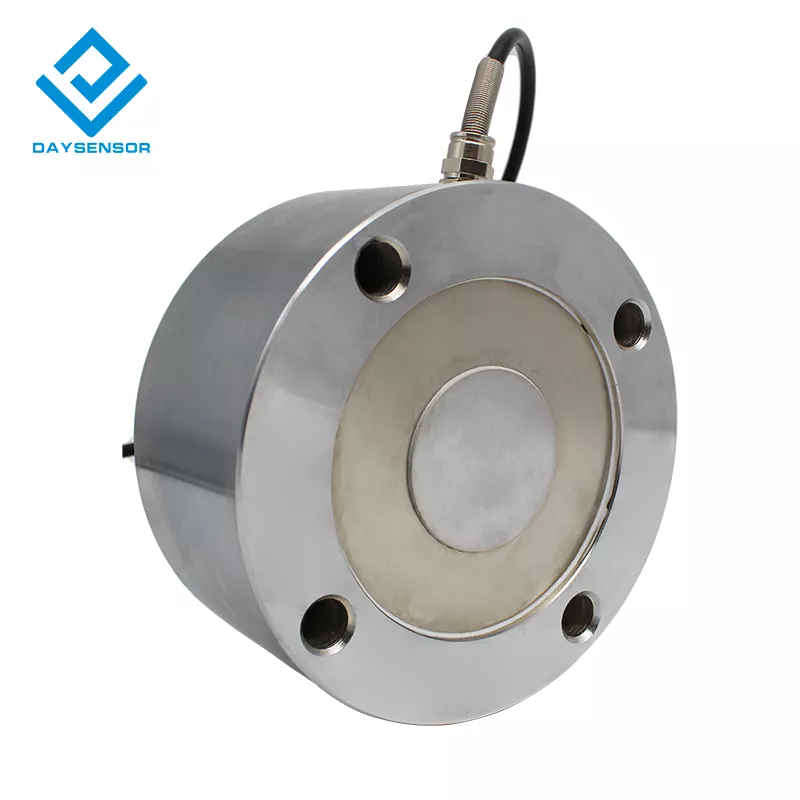

DYLF-105 High Capacity Spoke Load Cell for Truck Scales (50 - 500 ton)

SUPPORT
DatasheetWiring Diagram

Stock

INL-P-201-1

Out of Stock| Available on backorder

Order Product

$2,075.00 NZD
$2,075.00 NZD
Sale Sold out

The DYLF-105 Spoke Type Load Cell is a high-precision, heavy-duty force sensor designed for accurate tension and compression measurements in various high-capacity industrial applications, such as truck scales, material testing machines, and other weighing systems.  This robust sensor is constructed from alloy steel for enhanced durability and features a compact, low-profile design for easy integration into diverse systems.

Key Features:

  • Measures force in tension and compression.
  • Wide range of capacities available, from 50 to 500 tons.
  • High accuracy and stability, with non-linearity of 0.05%FS.
  • Operating temperature range: -20°C to +80°C.
  • Simple installation with threaded ends.
  • Strong resistance to partial load and lateral force.



Technical Specifications:

Parameter Value
Range 50 - 500 ton (according to selection)
Measurement Type Tension and Compression
Mounting Spoke-type load cell with female thread
Material Nickel-plated Alloy Steel
Operating Temperature Range -20~80 °C
Safe Overload 150%
Extreme Overload 200%
Frequency Response 10 kHz
Output Sensitivity 2.0 ±0.05 mV/V
Excitation Voltage 5~15 Vdc
Impedance 1400Ω
Insulation Resistance ≥5000 MΩ @100 Vdc
Cable 5 core x 5m
Creep (30 min) 0.05 %FS
Zero Point ±1 %FS
Non-linearity 0.05 %FS
Hysteresis 0.05 %FS
Repeatability 0.05 %FS
Zero point Temperature Drift per 10 °C 0.05 %FS
Sensitivity Temperature Drift per 10 °C 0.05 %FS



Dimensions:
