DYLF-101 Spoke Type Load Cell for Truck Scales (100 kg - 50 ton)
Stock
SKU:INL-P-198-01
Order Product
Regular price
$450.00 NZD
Regular price
Sale price
$450.00 NZD
Unit price
per
Couldn't load pickup availability

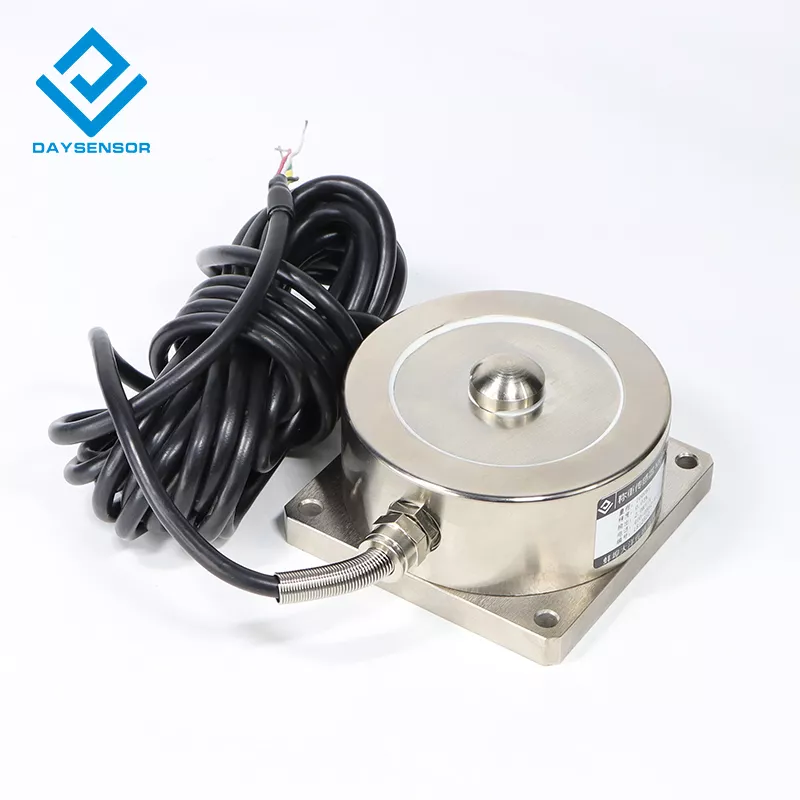

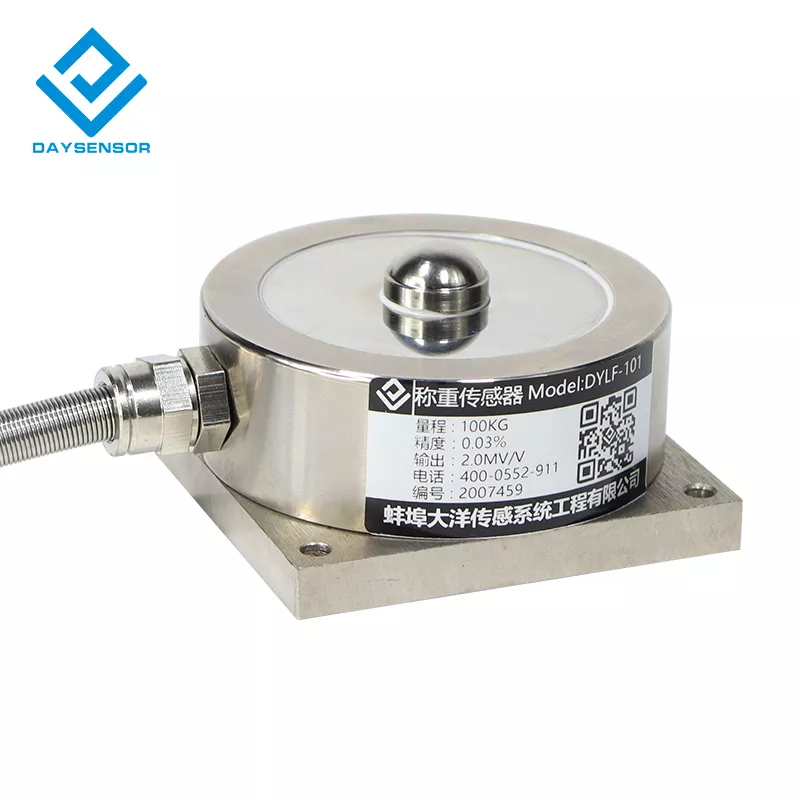

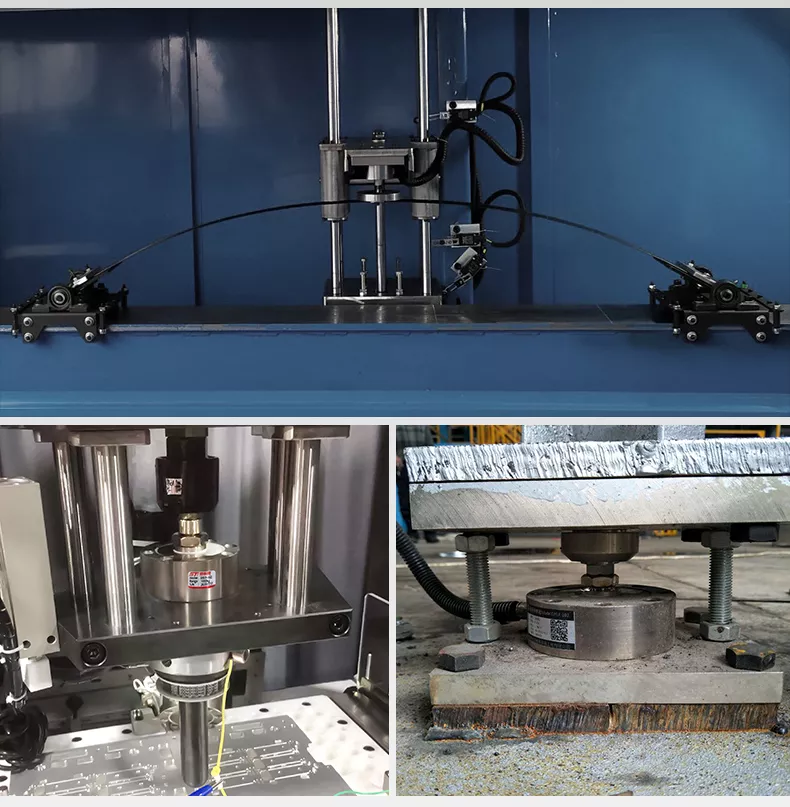

The DYLF-101 Spoke Type Load Cell is a high-precision, heavy-duty force sensor designed for accurate compression measurements in various industrial applications, particularly suited for use in truck scales and weighing systems. This robust sensor is constructed from nickel-plated alloy steel for enhanced durability and features a compact, low-profile design for easy integration into diverse systems.
Key Features:
- Measures force in compression.

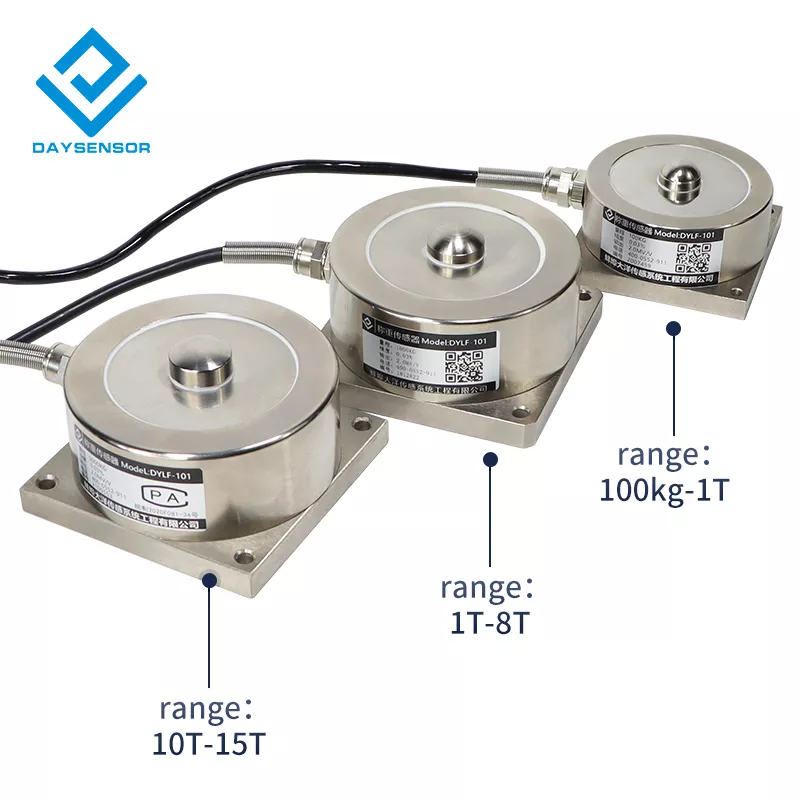

- Wide range of capacities available, from 0.2 to 50 tons.
- High accuracy and stability, with non-linearity of 0.05%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
- Strong resistance to partial load and lateral force.
Specifications:
|
Parameter |
Value |
| Range | 0.2~50 ton (according to selection) |
| Measurement Type | Tension and Compression |
| Mounting | Spoke-type load cell with female thread |
| Material | Alloy Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 2.0 ±0.05 mV/V |
| Excitation Voltage | 5~15 Vdc |
| Impedance | 700/1400Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | 5 core x 3m/5m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ±1 %FS |
| Non-linearity | 0.05 %FS |
| Hysteresis | 0.05 %FS |
| Repeatability | 0.03 %FS |
| Zero point Temperature Drift per 10 °C | 0.03 %FS |
| Sensitivity Temperature Drift per 10 °C | 0.03 %FS |
Dimensions:
