DYHX-004 Bolt Pre-tension Sensor - (0.5 - 200 kN)

SUPPORT
DatasheetWiring Diagram

Stock

INL-C-244-01

Out of Stock| Backorders available (ETA 3-weeks)

Order Product

$650.00 NZD
$650.00 NZD
Sale Sold out

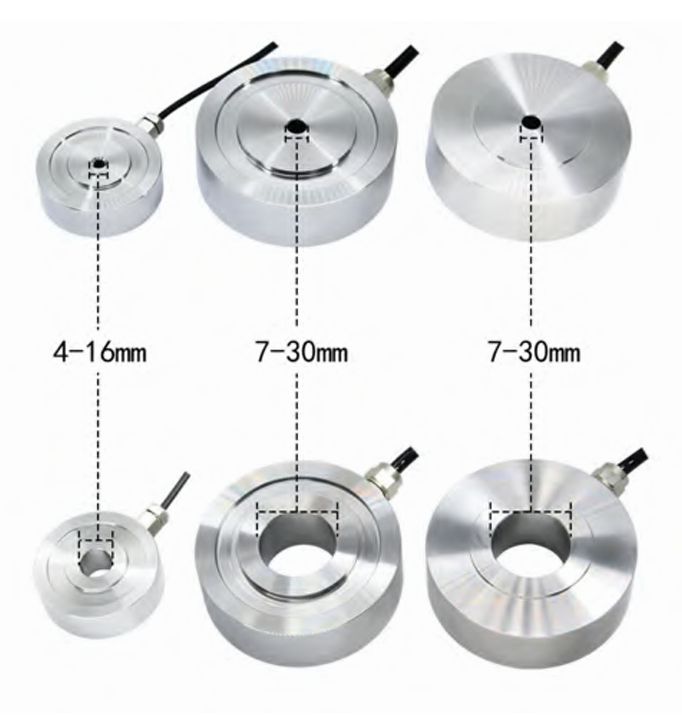

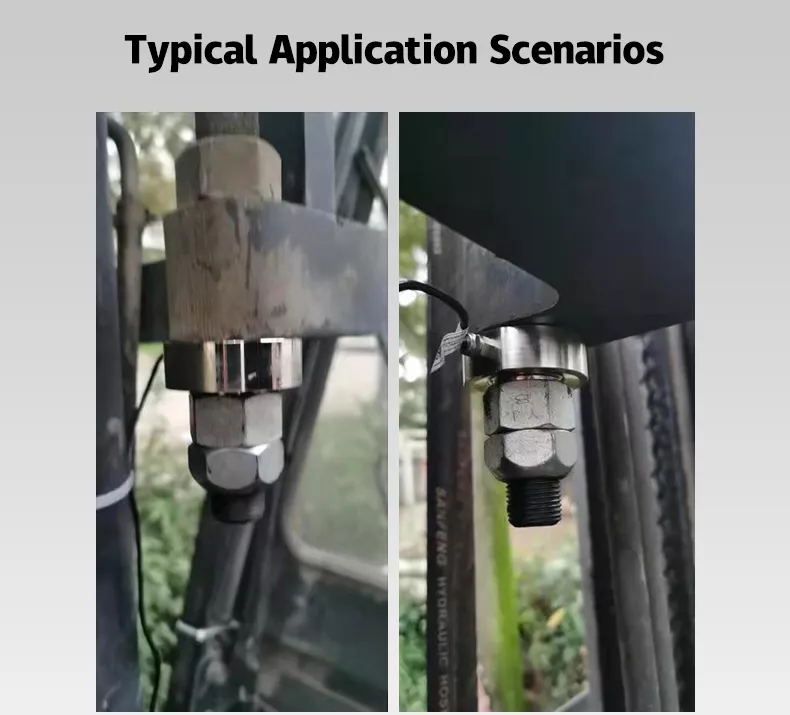

The DYHX-004 Bolt Pre-tension Sensor is a specialized sensor designed for measuring and monitoring the axial pre-tension force of bolt connections. It can be used to improve the reliability and safety of bolt connections and prevent bolt loosening or over-tightening. The inner hole size can be customized, and the elastomer is made of high-quality stainless steel material.

Key Features

  • Measures axial pre-tension force of bolt connections.
  • Improves the reliability and safety of bolted joints.
  • Prevents bolt loosening or over-tightening.
  • Compact design for limited space applications.
  • High-quality stainless steel construction.
  • Suitable for various industrial and testing applications.

Technical Specifications

Parameter Value
Range 200kN
Material Stainless Steel
Output Sensitivity 1.0 ± 10% mV/V
Impedance 700 Ω
Zero point output ± 2 %FS
Non-linearity 0.3%FS
Hysteresis 0.1%FS
Repeatability 0.1%FS
Creep (30 min) 0.1%FS
Temperature Sensitivity Drift 0.1%F.S./10°C
Zero point Temperature Drift 0.1%F.S./10°C
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Service voltage 5-15V
Operating Temperature Range -20-80°C
Safe overload 120%
Extreme overload 150%
Cable 5 core x 2m
Cable Limit Tension 10kg
Response frequency 10kHz
TEDS


Dimensions
