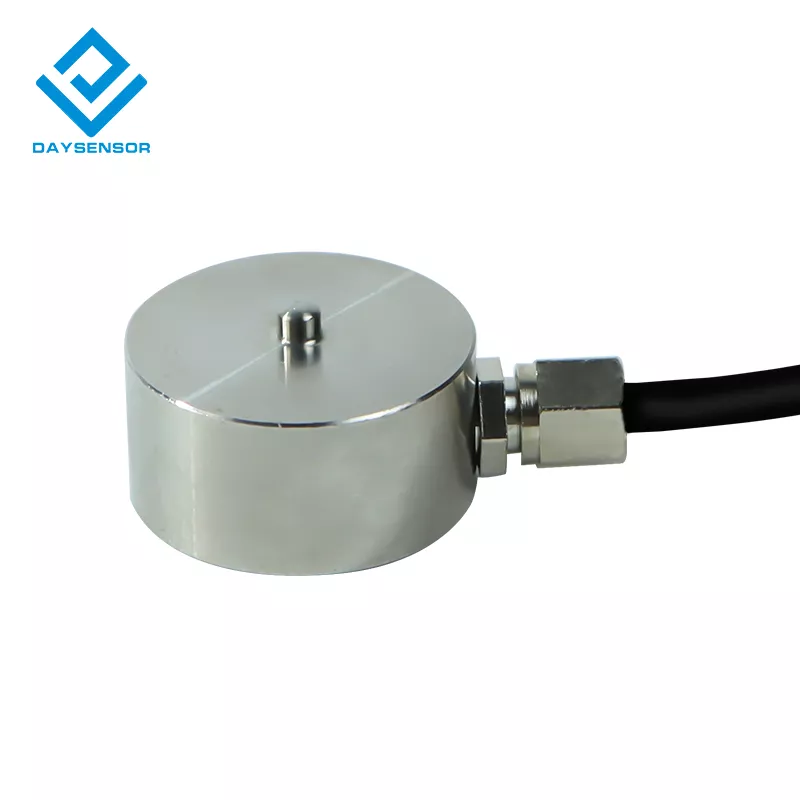

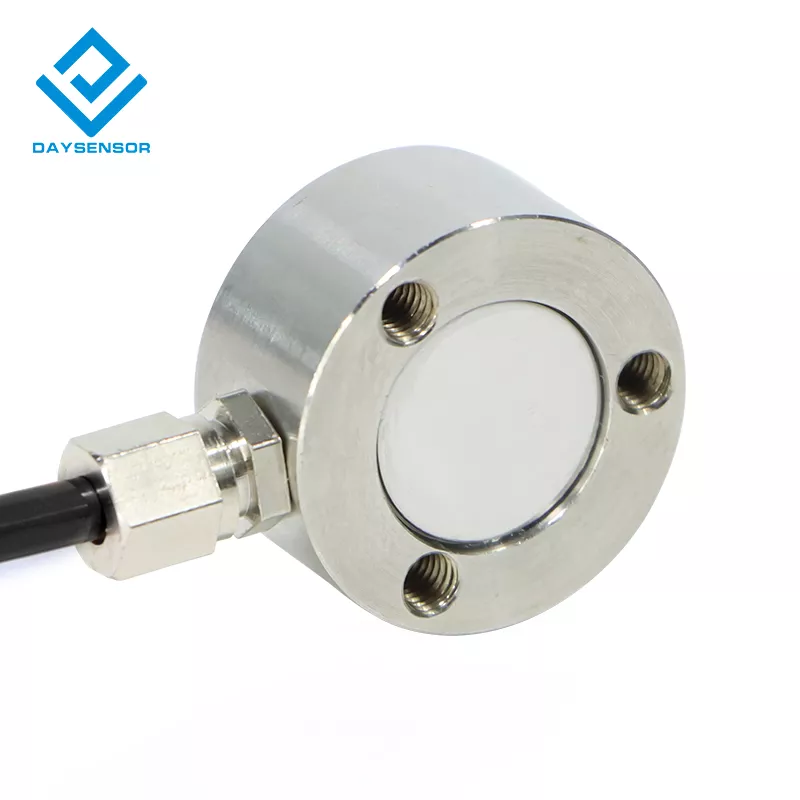

DYHW-116 Miniature High-Capacity Load Cell (3 kg - 5 ton)

SUPPORT
Datasheet Wiring Diagram

Stock

SKU:INL-M-229-01

Out of Stock| Available on backorder

Order Product

$150.00 NZD

Sale Sold out

Quantity

The DYHW-116 Miniature Load Cell is a compact and versatile force sensor designed for applications where space is limited and accurate measurement is crucial. This load cell offers a wide range of capacities, from 3 kg to 5 tons, making it suitable for various industrial and research applications.

Key Features

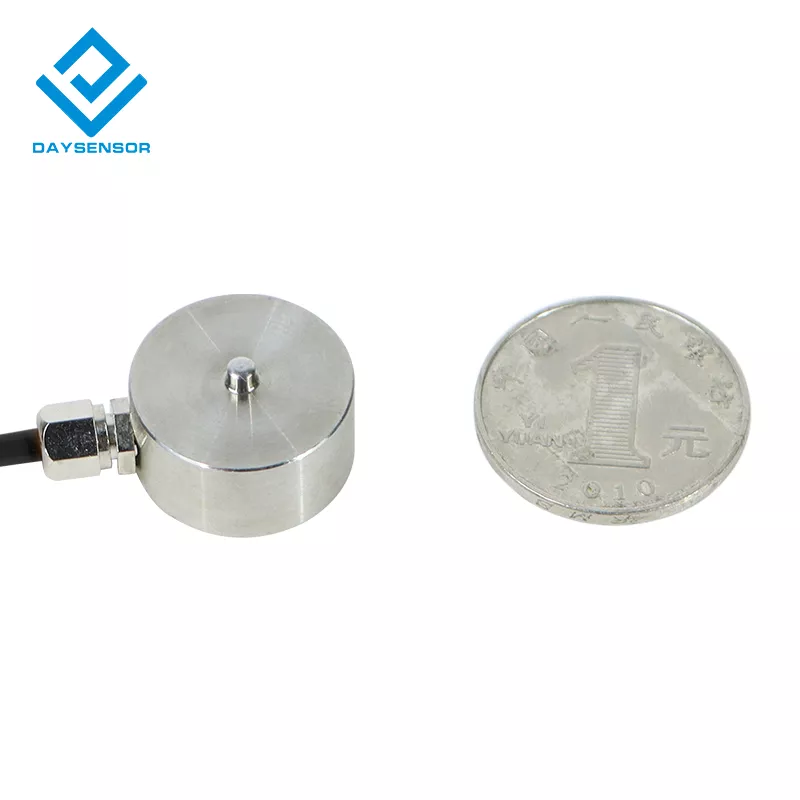

Compact Size: Miniature design for easy integration into space-constrained applications.

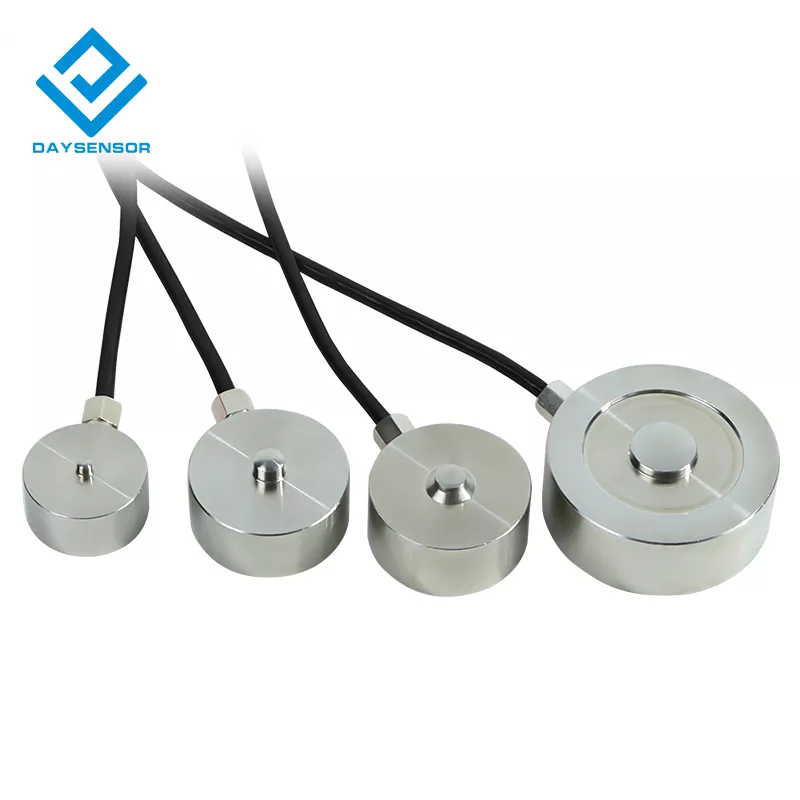

Wide Capacity Range: Measures a broad spectrum of forces, from 3 kg to 5 tons.
Durable Construction: Made of stainless steel with IP65 protection grade for reliable performance in various environments.

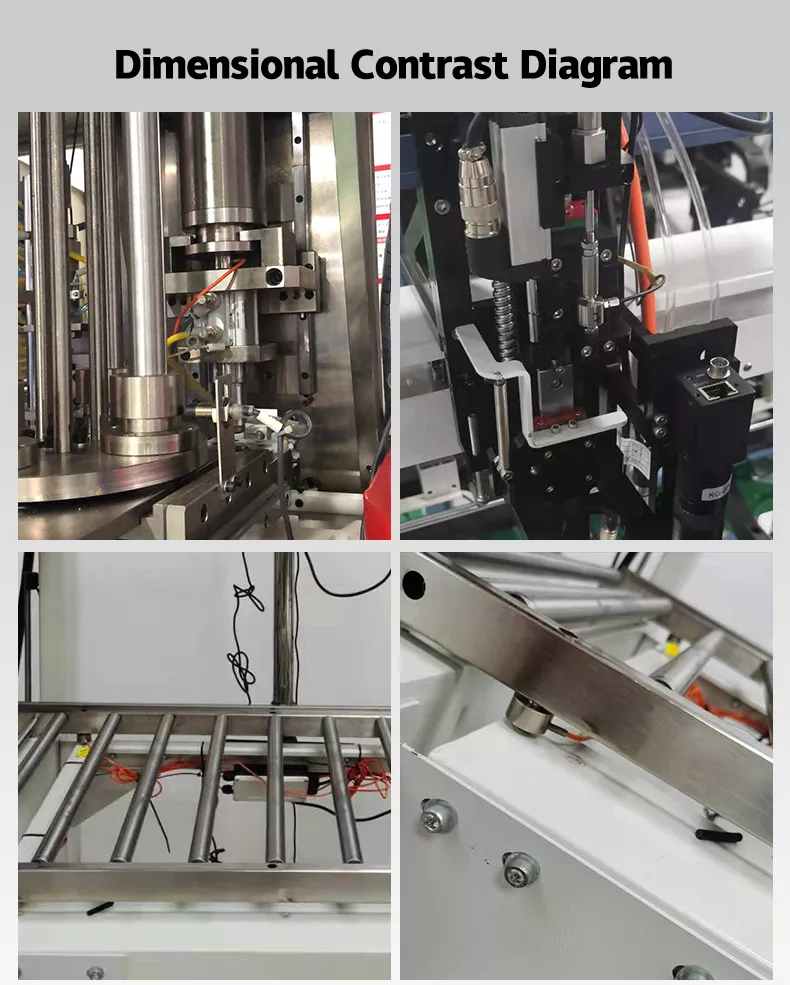

Versatile Applications: Suitable for various industries and research fields, including robotics, material testing, and automation equipment.
High Accuracy: Provides precise and stable force measurements.
Fast Response Speed: Ensures quick and accurate measurements for dynamic applications.

Technical Specifications

Parameter	Value
Range	3 kg - 5 ton
Material	Stainless Steel
Output Sensitivity	1.0-2.0 mV/V
Impedance	700/1000 Ω
Zero point output	+ 1 %FS
Non-linearity	0.3 %FS
Hysteresis	0.3 %FS
Repeatability	0.3 %FS
Creep (30 min)	0.1 %FS
Temperature Sensitivity Drift	0.3 %FS / 10 °C
Zero point Temperature Drift	0.3 %FS / 10 °C
Insulation Resistance	≥ 5000 MΩ / 100 VDC
Service voltage	5 - 10 Vdc
Operating Temperature Range	-20 - 80 °C
Safe Overload	150%
Extreme Overload	200%
Cable	3 x 2m (3kg - 5T), 5 x 2m (10T)
Cable Limit Tension	10 kg
Response Frequency	10 kHz
TEDS	Selectable
