DYHW-113 13mm Ø Miniature Load Cell (5-100 kg)

SUPPORT
Datasheet Wiring Diagram

Stock

SKU:INL-M-228-1

Out of Stock| Available on backorder

Order Product

$175.00 NZD

Sale Sold out

Quantity

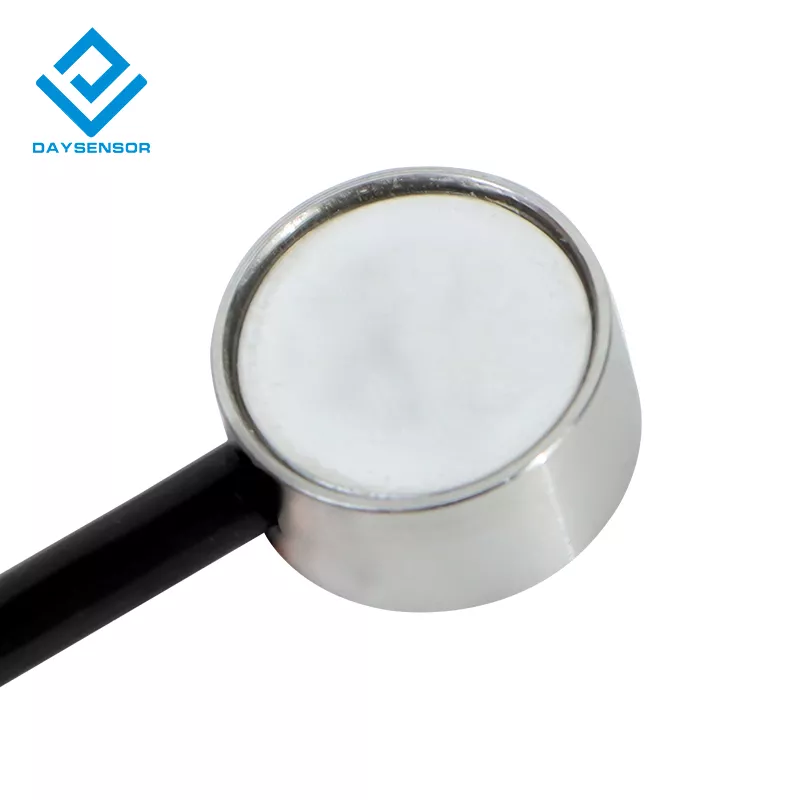

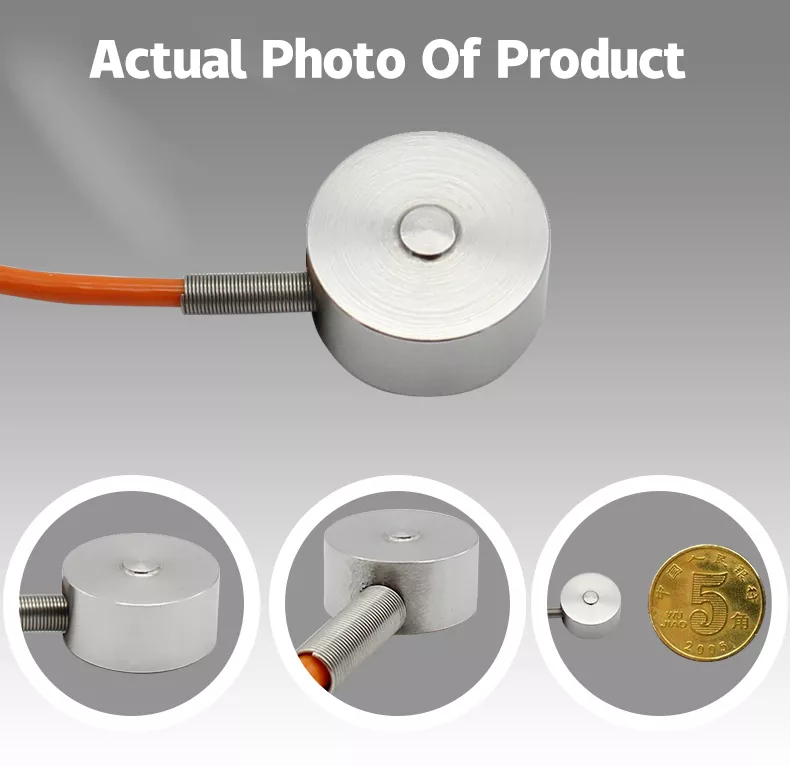

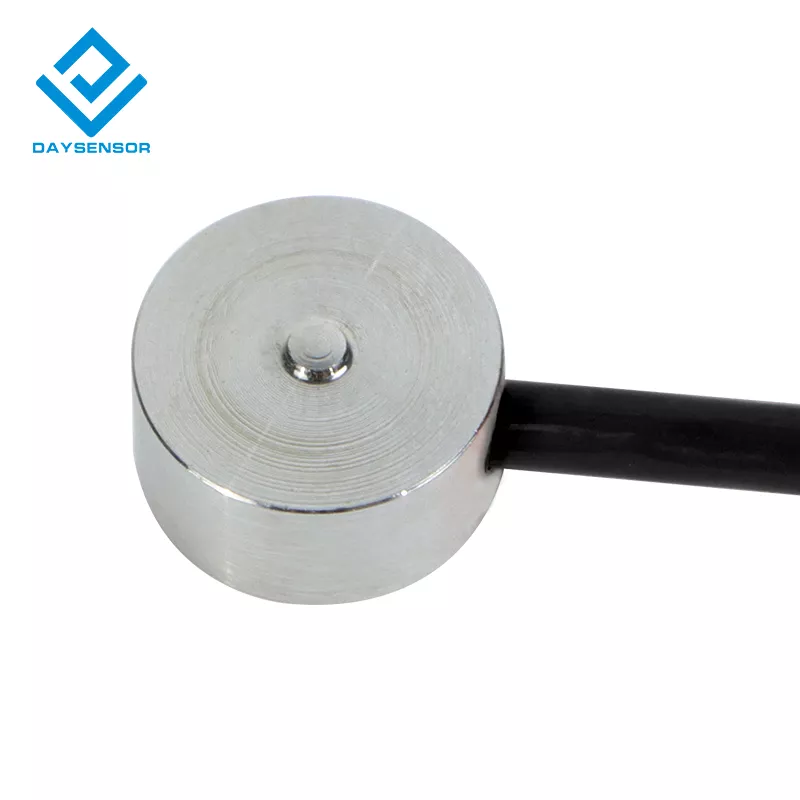

The DYHW-113 Miniature Load Cell is a compact and high-precision force sensor with a 13mm diameter, designed for various applications where space is limited and accurate measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing.

Key Features

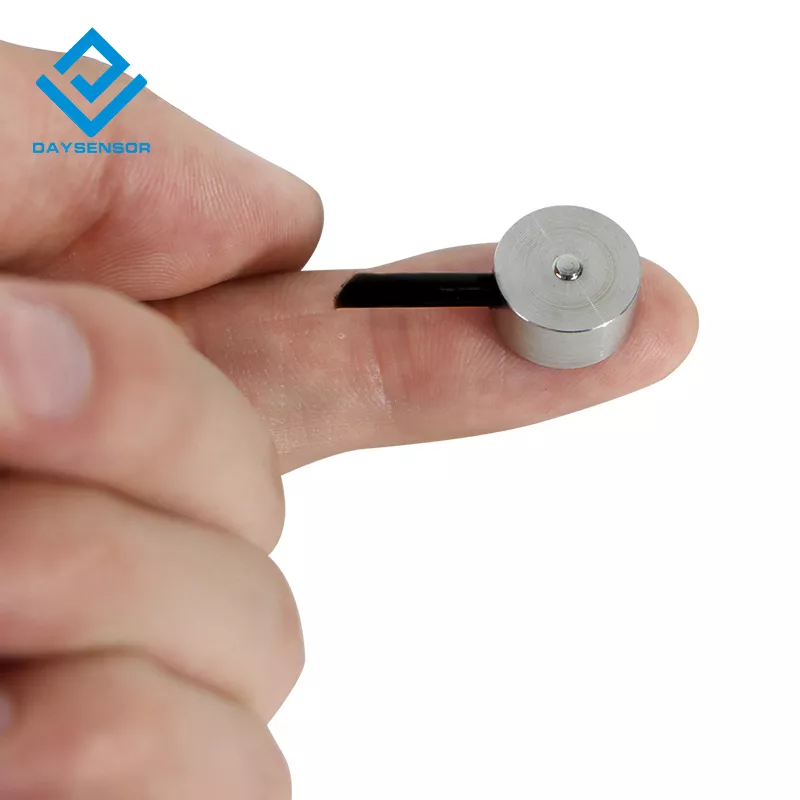

Compact Size: 13mm diameter design for applications with limited space constraints.
High Accuracy: Provides precise and reliable force measurements.
Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.

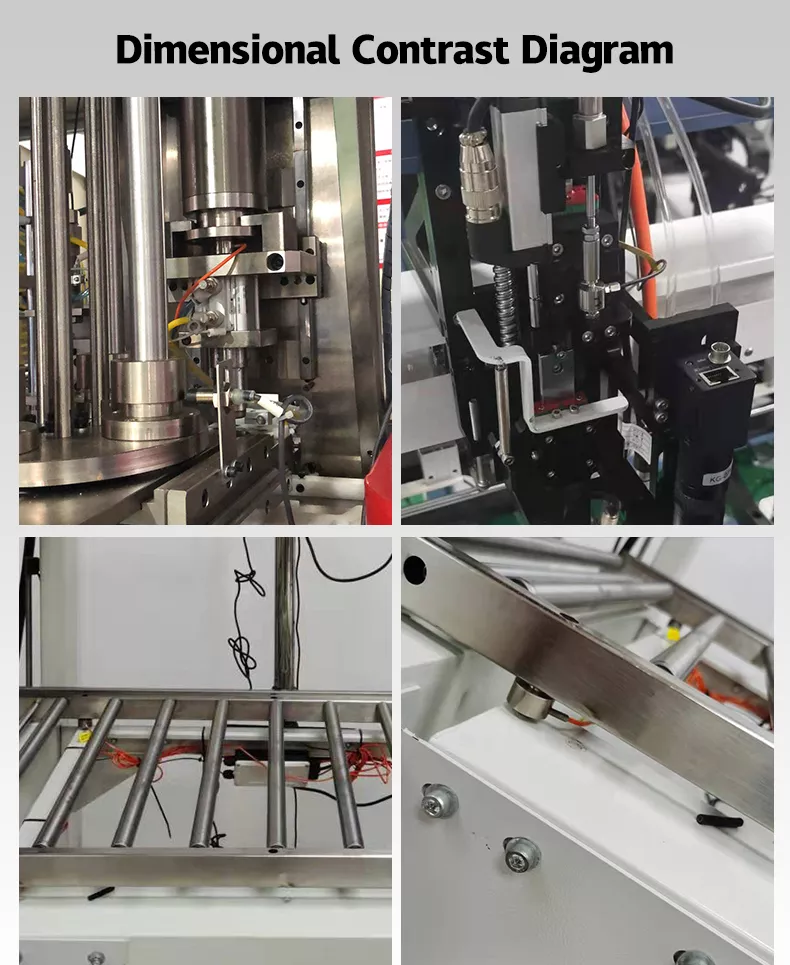

Versatile Applications: Suitable for various industries and research fields, including measurement and control of force, automation equipment, and key force analysis.
Fast Response Speed: Ensures quick and accurate measurements for dynamic applications.
Long Service Life: Designed for extended use and reliable performance.
Strong Anti-Interference Ability: Provides stable and accurate measurements even in the presence of interference.

Technical Specifications

Parameter	Value
Range	5-100 kg
Material	Stainless Steel
Output Sensitivity	1.0-2.0mV/V
Impedance	500/1000 Ω
Zero point output	+ 2 %FS
Non-linearity	0.5 %FS
Hysteresis	0.5 %FS
Repeatability	0.3 %FS
Creep (30 min)	0.1 %FS
Temperature Sensitivity Drift	0.5 %FS / 10 °C
Zero point Temperature Drift	0.5 %FS / 10 °C
Insulation Resistance	≥ 5000 MΩ / 100 VDC
Service voltage	5 - 10 Vdc
Operating Temperature Range	-20 - 80 °C
Safe Overload	150%
Extreme Overload	200%
Cable	5 core x 1m
Cable Limit Tension	10 kg
Response Frequency	10 kHz
TEDS	Selectable
