DYCW Weighing Module for Dynamic Loads (300 kg - 8 ton)
SHARE
Stock
SKU:INL-W-225-1
Order Product
Regular price
$1,375.00 NZD
Regular price
Sale price
$1,375.00 NZD
Unit price
/
per
Couldn't load pickup availability

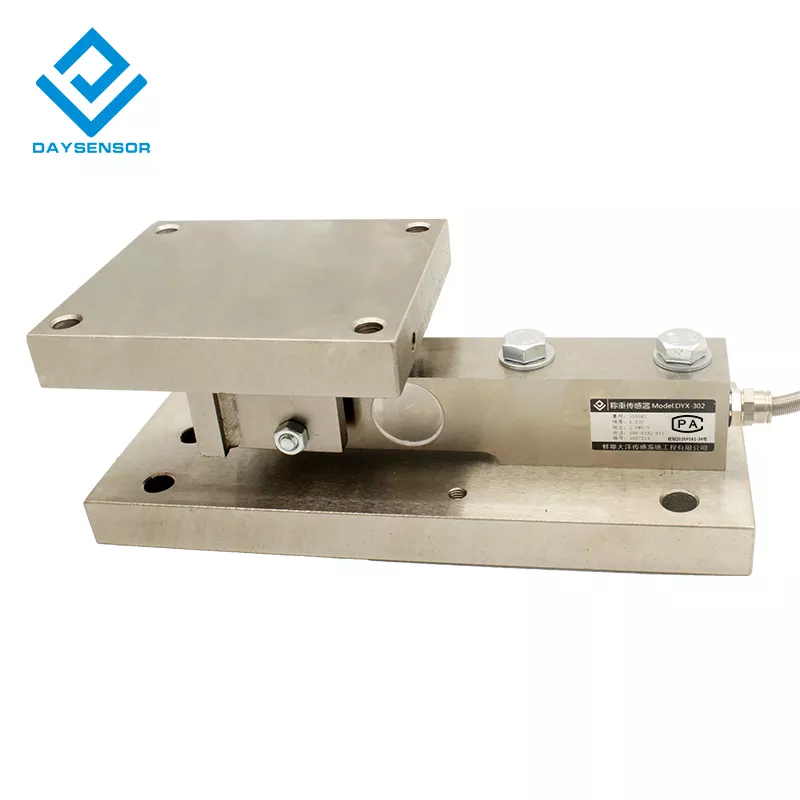

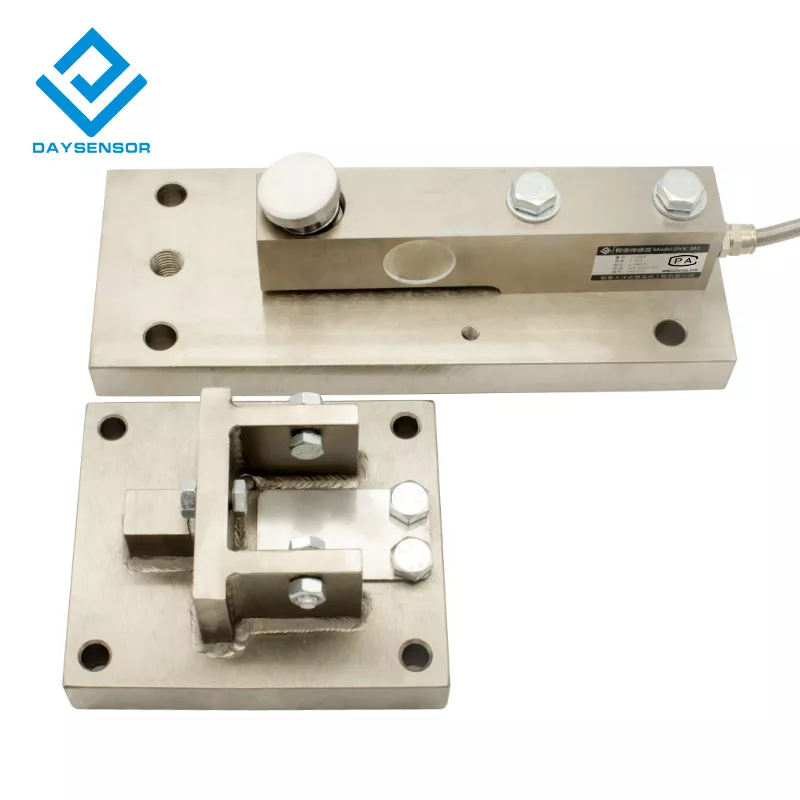

The DYCW Weighing Module is a versatile and reliable solution for dynamic weighing applications in various industrial settings. Its unique self-stabilizing design ensures accurate and consistent measurements even under dynamic loading conditions. This module is particularly well-suited for applications such as conveyor belt scales, platform scales, truck scales, and other weighing systems where the load may be in motion.
Key Features:

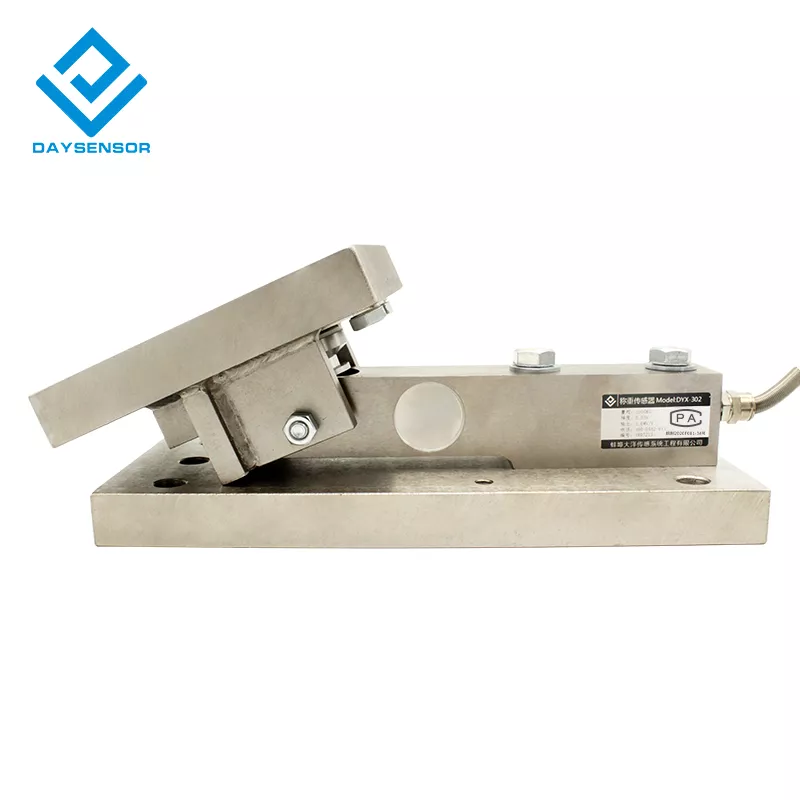

- Self-Stabilizing Design: The weighing platform is mounted on a rotatable axis, allowing it to adjust to the movement of the load and maintain accurate measurements.
- High Accuracy: Provides precise and stable measurements even under dynamic loading conditions.
- Durable Construction: Made with high-quality alloy steel or stainless steel for long-lasting performance in harsh environments.
- Easy Installation: Designed for straightforward integration into various weighing systems.
- Versatile Applications: Suitable for a wide range of dynamic weighing applications, including conveyor belt scales, platform scales, and truck scales.
Technical Specifications:
Parameter | Value |
Range | 0-20T |
Material | Stainless Steel / Alloy Steel |
Output Sensitivity | 2.0 ± 0.002 mV/V |
Zero point output | + 2 %FS |
Non-linearity | 0.03 %FS |
Hysteresis | 0.03 %FS |
Repeatability | 0.03 %FS |
Creep (30 min) | 0.03 %FS |
Temperature Sensitivity Drift | 0.02 %FS / 10 °C |
Zero point Temperature Drift | 0.02 %FS / 10 °C |
Impedance | 350 Ω |
Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
Service voltage | 5 - 15 Vdc |
Operating Temperature Range | -20 - 80 °C |
Safe Overload | 150% |
Extreme Overload | 200% |
Cable | 5 core x 2m |
Cable Limit Tension | 10 kg |
Response Frequency | 10 kHz |
Dimensions:
Parameter | 0.3/0.5/1/2/3 T | 5-8 T | 10 T | 15, 20 T |
L | 286 | 317.5 | 360 | 400 |
L1 | 32 | 32 | 32 | 25 |
L2 | 226 | 257 | 295 | 350 |
A | 150 | 178 | 184 | 220 |
A1 | 124 | 146 | 152 | 170 |
B | 128 | 152 | 154 | 220 |
B1 | 102 | 120 | 122 | 170 |
C | 112 | 152 | 154 | 220 |
C1 | 80 | 102 | 106 | 170 |
H | 106.9 | 146.2 | 215.7 | 255.7 |
H1 | 28 | 38 | 45 | 55 |
H2 | 23 | 30 | 45 | 55 |
T | 96 | 99 | 105 | 115 |
P | M10 | M16 | M20 | M24 |
G | Φ13 | Φ17 | Φ21 | Φ26 |
D | 1.6 | 1.6 | 3 | 3 |
