DYHX-001 Bolt Pre-tension Sensor (5-100 kg)

SUPPORT
DatasheetWiring Diagram

Stock

INL-C-242-1

Out of Stock| Backorders available (ETA 3-weeks)

Order Product

$250.00 NZD
$250.00 NZD
Sale Sold out

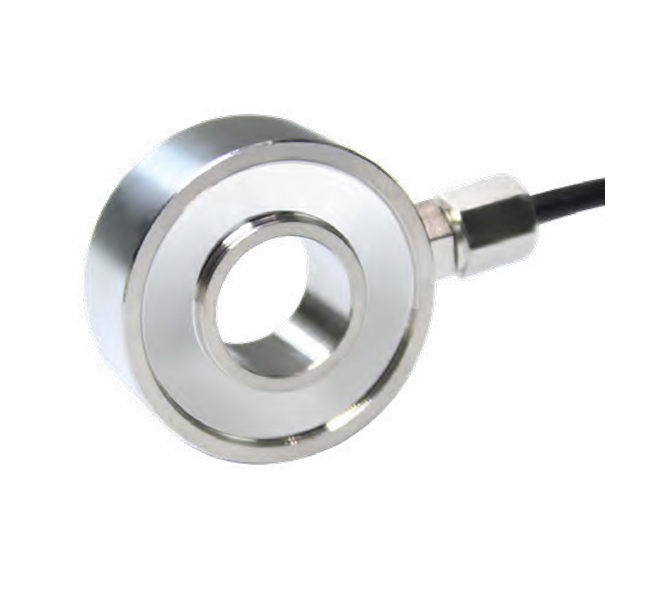

The DYHX-001 Bolt Pre-tension Sensor is a specialized load cell designed for measuring and monitoring the axial pre-tension force of bolt connections. This sensor helps to ensure the reliability and safety of bolted joints by preventing bolt loosening or overtightening. The DYHX-001 is constructed from high-quality stainless steel and features a compact design, making it suitable for various applications where space is limited.

Key Features

  • Measures axial pre-tension force of bolt connections.
  • Improves the reliability and safety of bolted joints.
  • Prevents bolt loosening or overtightening.
  • Compact design for limited space applications.
  • High-quality stainless steel construction.
  • Suitable for various industrial and testing applications.

Technical Specifications

Parameter Value
Range 0-100kg
Material Stainless Steel
Output Sensitivity 2.0 ± 10% mV/V
Impedance 350 Ω
Zero point output 2%FS
Non-linearity 0.5%FS
Hysteresis 0.1%FS
Repeatability 0.1%FS
Creep (30 min) 0.1%FS
Temperature Sensitivity Drift 0.1%F.S./10°C
Zero point Temperature Drift 0.1%F.S./10°C
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Service voltage 5-10v
Operating Temperature Range -20-80°C
Safe overload 120%
Extreme overload 150%
Cable 5 core x 2m
Cable Limit Tension 10kg
Response frequency 10kHz

Dimensions
