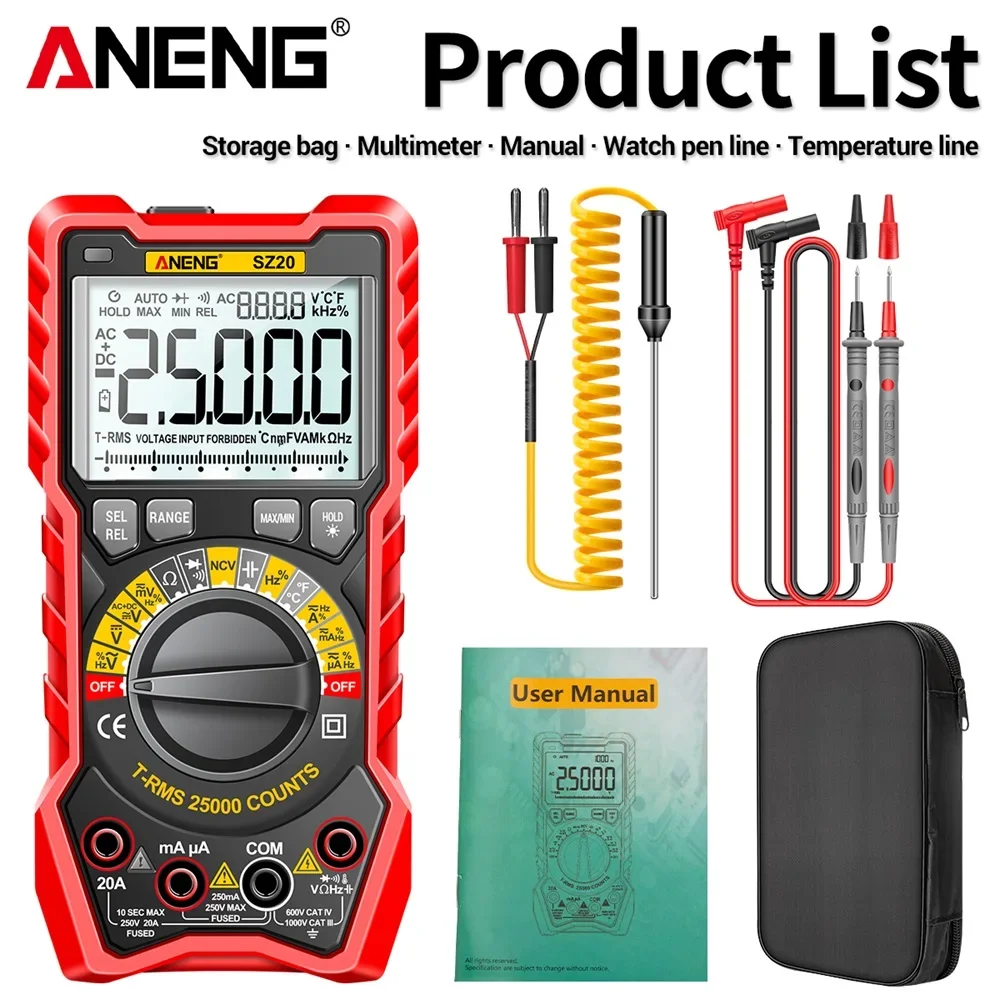

Aneng SZ20 Multimeter - 25,000 Counts

SUPPORT
User Manual

Stock

MEM-DG-143-1

Quantity: 2

Order Product

$160.00 NZD
$160.00 NZD
Sale Sold out

The Aneng SZ20 is a true RMS auto-ranging digital multimeter with a 25,000 count display. It offers a wide range of measurement functions, including AC/DC voltage and current, resistance, continuity, diode testing, capacitance, frequency, duty cycle, and temperature. The multimeter also features non-contact voltage detection (NCV) and can measure AC+DC voltage.

Technical Specifications

Feature/Measurement Specification/Range
General Specs
Sampling Rate Approx. 3 times/second
Display LCD
Over Range Indication OL
Polarity Display Automatic, negative indicated by "-" symbol
Power Supply AAA 1.5 V x 2
Low Battery Indication Yes
Auto Power Off After approx. 15 minutes of inactivity
Dimensions 135 mm x 65 mm x 33 mm
Weight Approx. 160 g (with batteries)
Electrical Measurements
DC Voltage 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V
AC Voltage 6.000 V / 60.00 V / 600.0 V / 750 V
DC Current 60.00 mA / 600.0 mA / 10.00 A
AC Current 60.00 mA / 600.0 mA / 10.00 A
Resistance 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Capacitance 9.999 nF / 99.99 nF / 999.9 nF / 9.999 μF / 99.99 μF / 999.9 μF / 9.999 mF / 50.00 mF
Frequency 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz / 5 MHz
Duty Cycle 0.1% to 99.9%
Temperature -40.0 °C to 1000 °C / -40.0 °F to 1832 °F
