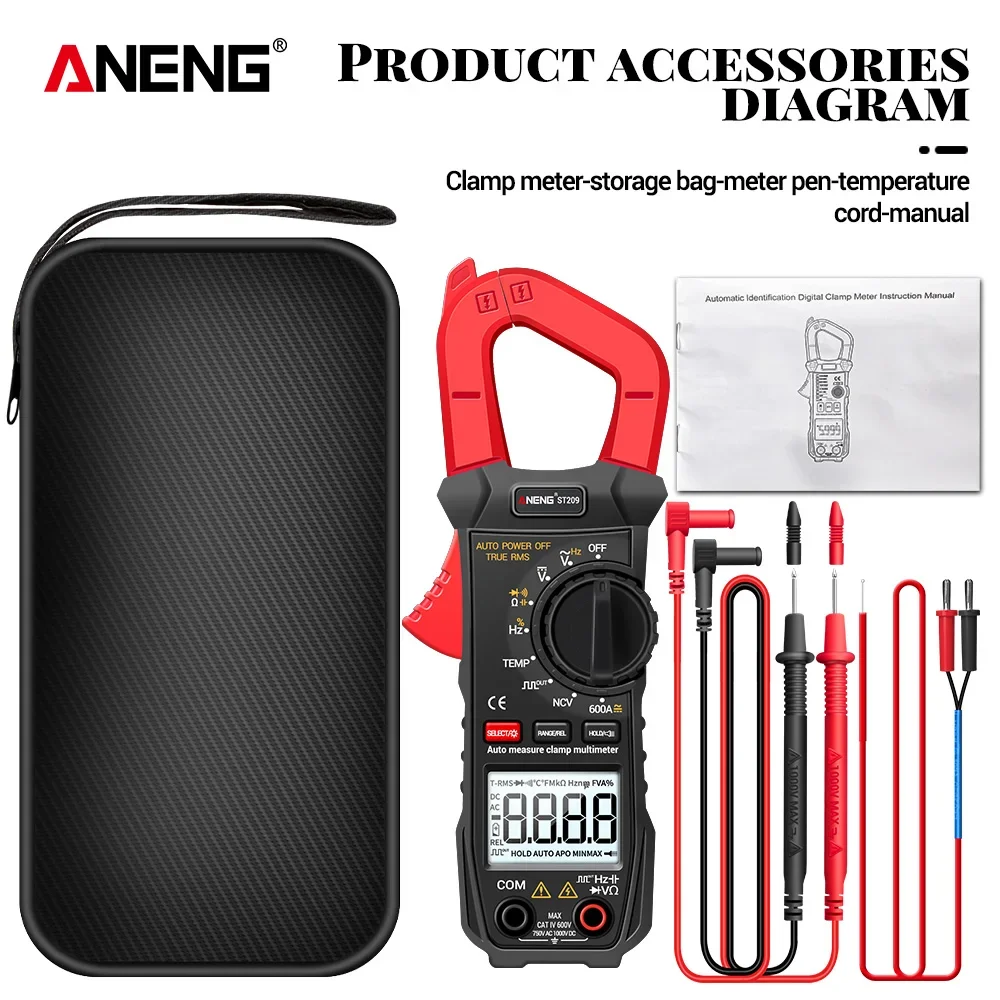

The Aneng ST209 is a 6000-count, pocket-sized, auto-ranging digital clamp multimeter. It provides accurate and reliable measurements of AC/DC voltage and current (up to 600A), resistance, capacitance, frequency, diode functionality, temperature, and continuity. Additional features include True RMS measurements, non-contact voltage detection (NCV), and a built-in flashlight. The device is powered by two AAA 1.5V batteries and features a large LCD display with a backlight for easy reading.
The Aneng ST209 is designed in accordance with the IEC1010 safety standards set by the International Electrotechnical Commission.
Technical Specifications
Measurement
|
Ranges |
DC Voltage (DCV) | 6V / 60V / 600V / 1000V |
AC Voltage (ACV) | 6V / 60V / 600V / 750V |
DC Current (DCA) | 60A / 600A |
AC Current (ACA) | 60A / 600A |
Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 40MΩ |
Capacitance | 60nF / 600nF / 6uF / 60uF / 600uF / 6mF / 30mF |
Frequency | 10Hz - 10MHz |
Temperature | -20°C to 1000°C (-4°F to 1832°F) |
Sampling Rate | Approx. 3 times/second |
Display | LCD |
Power Supply | AAA 1.5V x 2 |
